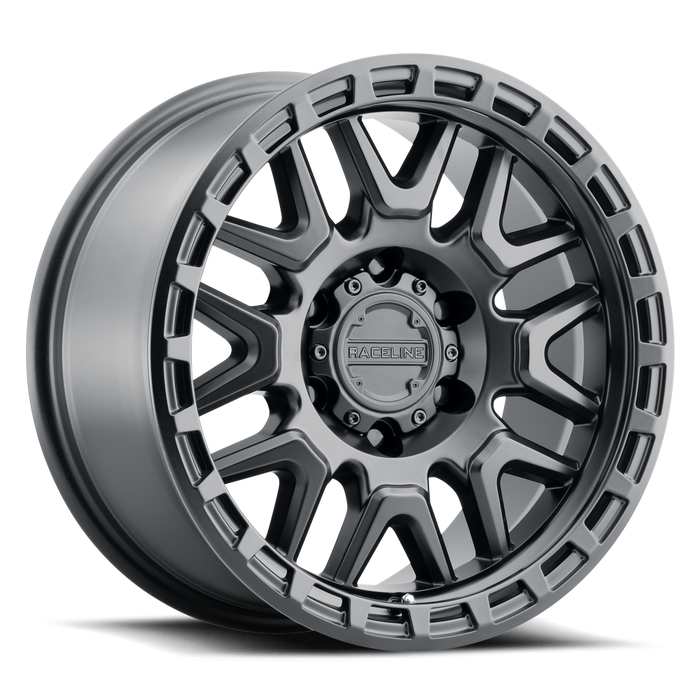

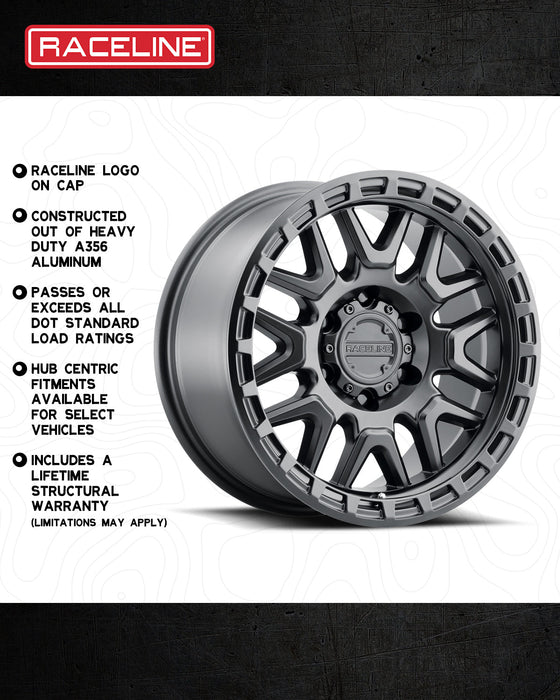

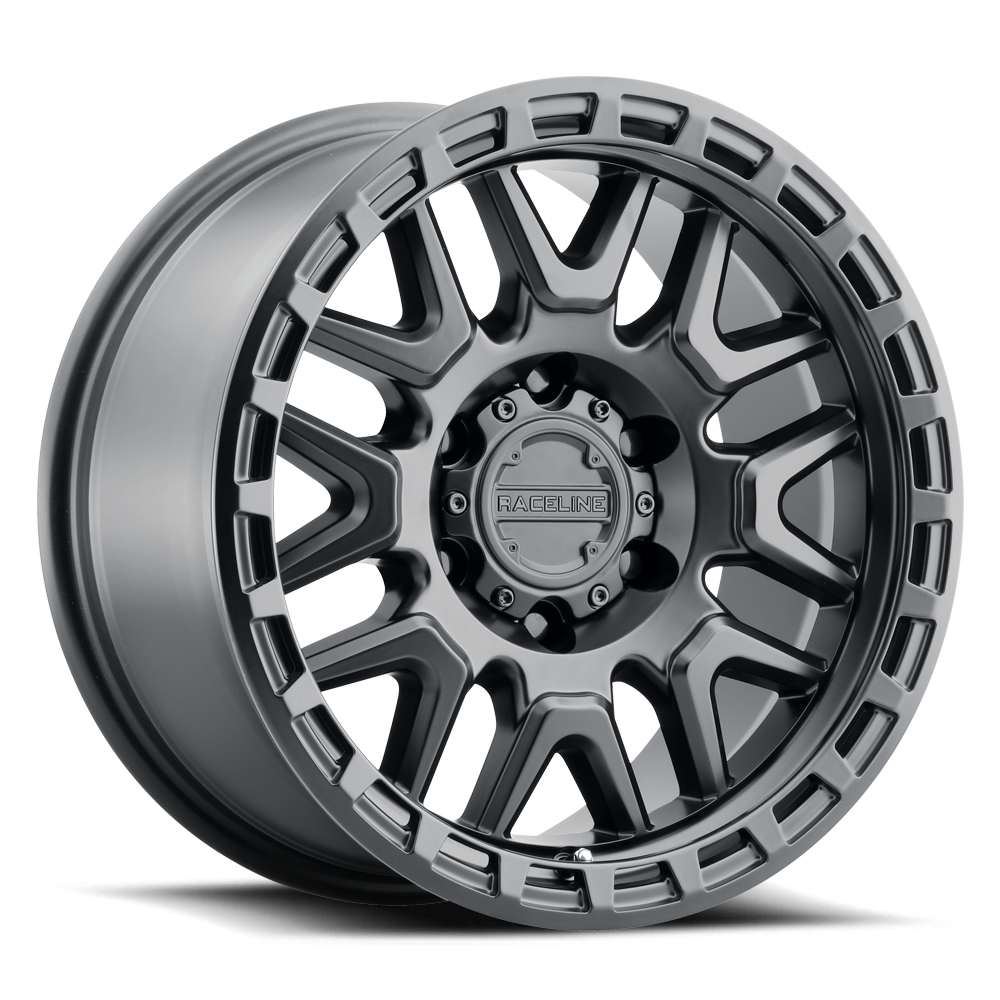

- Rugged split V-spoke design with a sturdy bead ring feature
- Constructed out of heavy duty A356 aluminum
- Engineered to be one of the strongest wheels available
- Available in Satin Black and Bronze finishes
- Black-Out bolt on cap with contrasting embossed Raceline logo
- Available in 16”, 17” and 18” diameters for most trucks
- Includes a Lifetime Structural Warranty (limitations may apply)
Sizes & Specifications
| Size | Bolt Pattern | Offset | Weight (lb) | Part # |
|---|---|---|---|---|
| 20X9 | 6x139.7mm (6x5.5") | 0mm | 35.0 | 953B-29060-00 |
| 20X9 | 6x135mm | 0mm | 35.0 | 953B-29065-00 |
| 20X9 | 8x165.1mm (8x6.5") | 0mm | 37.0 | 953B-29080-00 |
| 20X9 | 8x170mm | 0mm | 37.0 | 953B-29081-00 |
| 16X8 | 6x139.7mm (6x5.5") | 0mm | 25.0 | 953B-68060-00 |
| 17X8.5 | 5x127mm (5x5") | 0mm | 33.0 | 953B-78550-00 |
| 17X8.5 | 6x139.7mm (6x5.5") | 18mm | 33.0 | 953B-78560+18 |
| 17X8.5 | 6x139.7mm (6x5.5") | 0mm | 33.0 | 953B-78560-00 |
| 17X8.5 | 6x120mm | 0mm | 33.0 | 953B-78562-00 |
| 17X8.5 | 6x135mm | 18mm | 33.0 | 953B-78565+18 |
| 17X8.5 | 6x135mm | 0mm | 33.0 | 953B-78565-00 |
| 17X9 | 5x127mm (5x5") | -12mm | 33.0 | 953B-79050-12 |
| 17X9 | 6x139.7mm (6x5.5") | -12mm | 33.0 | 953B-79060-12 |
| 17X9 | 8x165.1mm (8x6.5") | -12mm | 33.0 | 953B-79080-12 |
| 17X9 | 8x170mm | -12mm | 33.0 | 953B-79081-12 |
| 18X9 | 5x150mm | 18mm | 29.0 | 953B-89051+18 |
| 18X9 | 6x139.7mm (6x5.5") | 18mm | 29.0 | 953B-89060+18 |
| 18X9 | 6x139.7mm (6x5.5") | -12mm | 31.0 | 953B-89060-12 |
| 18X9 | 6x135mm | 18mm | 34.0 | 953B-89065+18 |
| 18X9 | 8x165.1mm (8x6.5") | 18mm | 34.0 | 953B-89080+18 |
| 18X9 | 8x165.1mm (8x6.5") | -12mm | 33.0 | 953B-89080-12 |
| 18X9 | 8x170mm | -12mm | 33.0 | 953B-89081-12 |
| 18X9 | 8x180mm | 18mm | 34.0 | 953B-89088+18 |
Load rating(s): 2500, 3650 lb
Hub bore(s): 106.1, 110.3, 124.2, 125.2, 67.1, 72.62, 78.1, 87.1 mm
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
