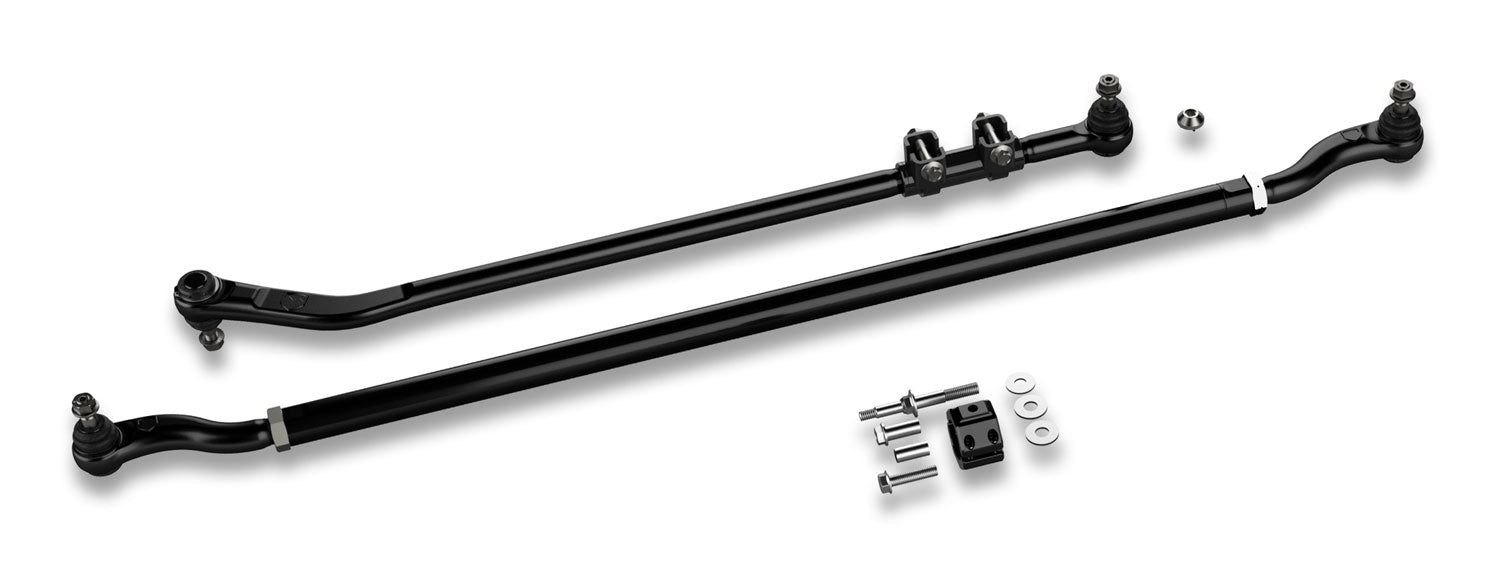

JK: HD Chromoly Tie Rod Kit & HD Forged Drag Link Flip Kit (4–6” Lift)

JK: HD Forged Drag Link Flip Kit & HD Chromoly Tie Rod Kit (RHD - No Flip).

• The TeraFlex JK: HD Forged Drag Link Flip Kit & HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.
• HD Forged Drag Link Flip Kit (# 1853930)
• Axle end joint is flipped 180 degrees to be pressed down into the top of the knuckle
• Tie rod joint incorporates same features found in TeraFlex Ball Joints, including 4140 chromoly ball/stud and 1045 carbon steel housing

Fitment and Installation Notes

• REQUIRES aftermarket wheels with 4.75" backspacing or less - or 1.25" Wheel Offset Adapter Kit (# 1055000) for stock wheels - NOT INCLUDED.
• The included Steering Stabilizer Relocation Bracket is NOT compatible with Falcon Nexus EF Steering Stabilizers
• REQUIRES Falcon 1-5/8" Steering Stabilizer Tie Rod Clamp Kit (# 99-01-01-158).
• REQUIRES additional modifications/components to flip the Drag Link over the axle to correct track bar angle, optimize steering geometry, and improve handling - NOT INCLUDED.

Fitment

• Vehicle(s):
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)
• Axle(s):
• Dana 30 front axle
• Dana 44 front axle
• Lift Height:
• Left-Hand Drive – Flip: 4–6” Lift
• Right-Hand Drive – No Flip: 0–3” Lift

What's included

• HD Chromoly Tie Rod Kit (0–6” Lift) (# 1853910):
• HD Chromoly Tie Rod w/ pressed-in joints
• Steering Stabilizer Relocation Kit (1-5/8” HD Tie Rod) (# 1123160)
• HD Ball Joint Adjusting Tool
• All necessary hardware
• HD Forged Drag Link Flip Kit (4–6” Lift) (# 1853930):
• HD Forged Drag Link w/ “flipped” pressed-in Joints

Warranty: Lifetime
