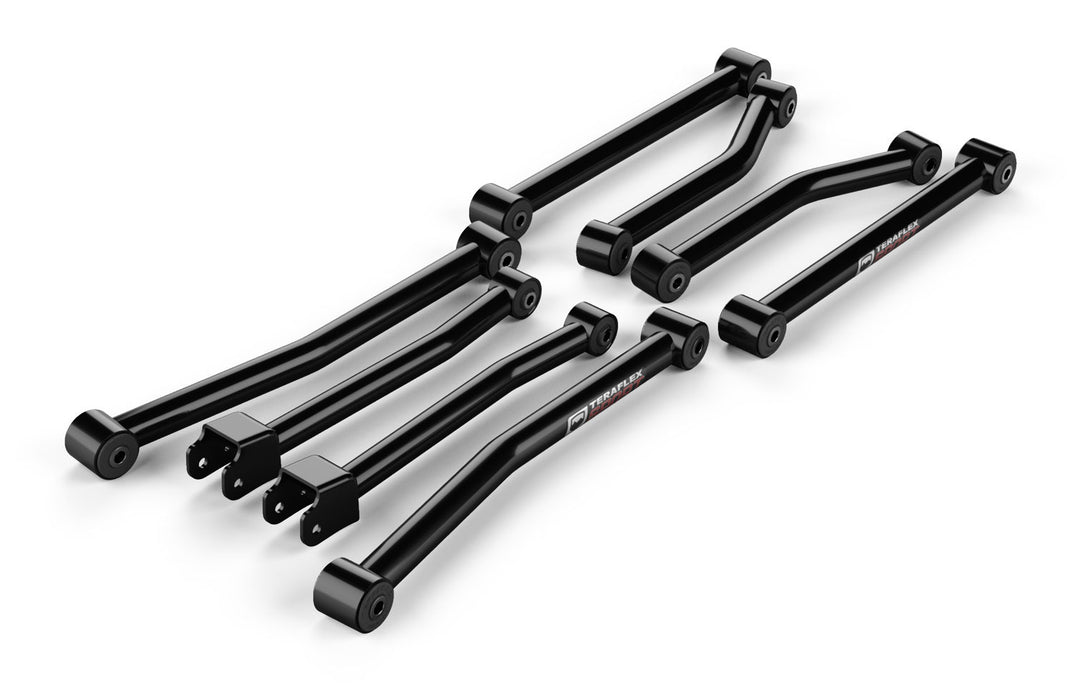

JK: Sport Control Arm Kit - 8-Arm (2.5-3" Lift).
- TeraFlex JK: Sport Control Arms provide maintenance-free and dependable performance on JK Wrangler/Unlimited models with 2.5-3" lifts.
- Preset Sport Control Arms balance caster and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2.5-3" lift kits
- Sport Control Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
- Re-centers axles in the wheel well for proper suspension movement
Fitment
- Vehicle(s):
- JK Wrangler (2-door)
- JK Wrangler Unlimited (4-door)
- Specs:
- Lift Height: 2.5–3”
- Control Arm Specs:
- JK: Sport Control Arm Pair – Front Upper (# 1252200):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 18-3/4”
- Preset Length: 18-3/4”
- Bolt – Both: 12mm
- Bushing – Axle: OEM
- Bushing – Frame: 611014
- JK: Sport Control Arm Pair – Front Lower (# 1252000):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 22-5/8”
- Preset Length: 22-13/16”
- Bolt – Both: 14mm
- Bushing – Both: 611011
- JK: Sport Control Arm Pair – Rear Upper (# 1252300):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 17-7/16”
- Preset Length: 17-11/16”
- Bolt – Both: 14mm
- Bushing – Both: 611012
- JK: Sport Control Arm Pair – Rear Lower (# 1252100):
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 19-3/4”
- Preset Length: 19-15/16”
- Bolt – Both: 14mm
- Bushing – Both: 611011
What's included
- Sport Control Arm Pairs:
- Arm Pair – Front Upper (# 1252200)
- Arm Pair – Front Lower (# 1252000)
- Arm Pair – Rear Upper (# 1252300)
- Arm Pair – Rear Lower (# 1252100
Warranty: Lifetime
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. www.P65Warnings.ca.gov
