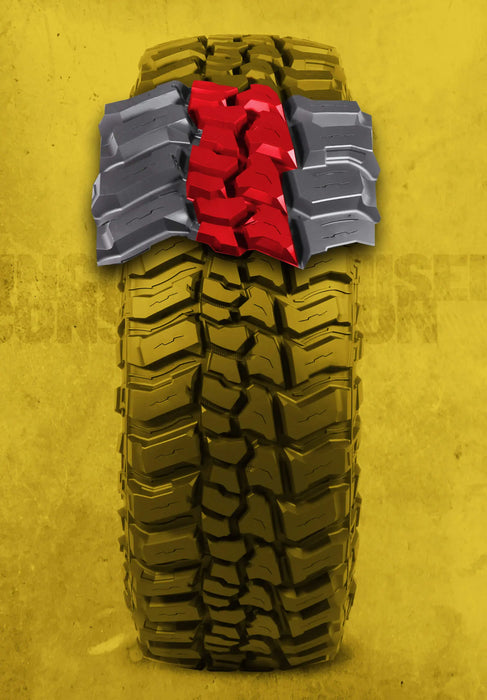

- Asymmetrical tread pattern reduces noise, improves handling and ride
- Extra large four-pitch Sidebiters® for enhanced off-road traction

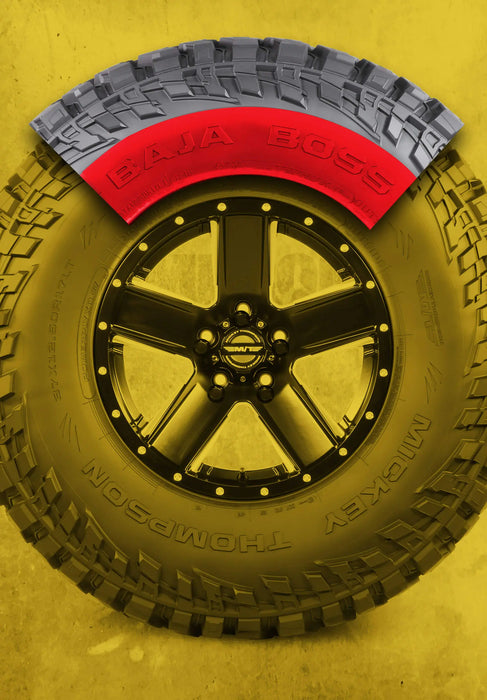

- Powerply™ XD adds heavier denier cord to the angled third ply providing better puncture resistance, quicker steering response and greater stability
- Stone ejector ribs prevent gravel from being wedged into tread grooves
- T4 silica-reinforced compound provides excellent wet handling/braking performance, cut & chip resistance and lasting treadlife
- Sizes from 15-24 inch wheel diameters for a variety of leveled and lifted vehicles
- Several sizes with increased load carrying capacity, including load range F
- Select flotation sizes with reduced loads for lighter duty pickups, SUVs and Jeeps®
Sizes & Specifications
| Size | Load Range | Service | O.D. (in) | Section Width (in) | Tread Depth (32nds) | Measuring Rim (in) | Approved Rims (in) | Max Load / Infl. | Approx. Wt (lbs) | MT Part # |
|---|---|---|---|---|---|---|---|---|---|---|
| 33X12.50R15LT | C | 108Q | 32.7 | 12.2 | 21.0 | 10.0 | 8.0-11.0 | 2205 lbs @ 35 psi. | 60 | 58532 |
| 35X12.50R15LT | C | 113Q | 34.6 | 13.1 | 21.0 | 10.0 | 8.0-11.0 | 2535 lbs @ 35 psi. | 71 | 58552 |
| LT285/75R16 (33X11.50R16LT) | E | 126Q | 33 | 11.2 | 19.0 | 8.0 | 7.5-9.5 | 3750 lbs @ 80 psi. | 63 | 58631 |
| LT315/75R16 (35X12.50R16LT) | E | 127Q | 34.5 | 12.6 | 20.5 | 8.5 | 8.0-11.0 | 3860 lbs @ 65 psi. | 73 | 58652 |
| LT285/70R17 (33X11.50R17LT) | E | 121Q | 33 | 11.5 | 19.0 | 8.5 | 7.5-9.5 | 3195 lbs @ 80 psi. | 63 | 58731 |
| 33X12.50R17LT | D | 114Q | 33 | 12.3 | 21.0 | 10.0 | 8.5-11.0 | 2600 lbs @ 50 psi. | 67 | 58739 |
| LT305/65R17 (33X12.50R17LT) | E | 121Q | 32.7 | 12.3 | 21.0 | 9.0 | 8.5-11.0 | 3195 lbs @ 65 psi. | 67 | 58732 |
| 35X12.50R17LT | D | 119Q | 34.8 | 12.5 | 21.0 | 10.0 | 8.0-11.0 | 3000 lbs @ 50 psi. | 71 | 272562 |
| LT315/70R17 (35X12.50R17LT) | E | 121Q | 34.6 | 12.6 | 21.0 | 9.5 | 8.0-11.0 | 3195 lbs @ 65 psi. | 70 | 272566 |
| 37X12.50R17LT | D | 124Q | 36.8 | 13.0 | 22.0 | 10.0 | 8.0-11.0 | 3525 lbs @ 50 psi. | 79 | 58772 |
| 40X13.50R17LT | C | 121Q | 39.8 | 13.6 | 22.0 | 11.0 | 8.5-11.5 | 3195 lbs @ 35 psi. | 92 | 58703 |
| 42X13.50R17LT | C | 126P | 41.9 | 14.2 | 22.0 | 11.0 | 9.0-11.5 | 3750 lbs @ 35 psi. | 102 | 249341 |
| LT285/65R18 (33X11.50R18LT) | E | 125Q | 33.4 | 11.2 | 19.0 | 8.5 | 8.0-10.0 | 3640 lbs @ 80 psi. | 64 | 58831 |
| 33X12.50R18LT | E | 118Q | 32.7 | 12.8 | 21.0 | 10.0 | 8.5-11.0 | 2910 lbs @ 65 psi. | 67 | 58839 |
| LT305/60R18 (33X12.50R18LT) | F | 126Q | 32.7 | 12.4 | 21.0 | 9.0 | 8.5-11.0 | 3750 lbs @ 80 psi. | 68 | 58832 |
| 35X12.50R18LT | D | 118Q | 34.8 | 12.5 | 21.0 | 10.0 | 8.5-11.0 | 2910 lbs @ 50 psi. | 73 | 58859 |
| LT285/55R20 (33X11.50R20LT) | E | 122Q | 32.6 | 11.7 | 18.5 | 9.0 | 8.0-10.0 | 3305 lbs @ 80 psi. | 63 | 272469 |
| LT295/55R20 (33X12.00R20LT) | E | 123Q | 33.1 | 12.3 | 20.0 | 9.5 | 8.0-10.5 | 3415 lbs @ 80 psi. | 68 | 58032 |
| 33X12.50R20LT | E | 114Q | 32.7 | 12.2 | 21.0 | 10.0 | 8.5-11.0 | 2600 lbs @ 65 psi. | 68 | 58039 |
| LT305/55R20 (33X12.50R20LT) | F | 125Q | 33.5 | 12.2 | 20.5 | 9.5 | 8.5-11.0 | 3640 lbs @ 80 psi. | 70 | 58034 |
| 33X13.50R20LT | F | 120Q | 32.6 | 13.3 | 21.0 | 11.0 | 9.5-12.0 | 3085 lbs @ 80 psi. | 73 | 58033 |
| 35X12.50R20LT | F | 125Q | 34.7 | 12.4 | 21.0 | 10.0 | 8.5-11.0 | 3640 lbs @ 80 psi. | 73 | 58052 |
| 35X13.50R20LT | F | 126Q | 34.6 | 13.2 | 21.0 | 11.0 | 9.5-12.0 | 3750 lbs @ 80 psi. | 81 | 58053 |
| 37X12.50R20LT | E | 126Q | 36.7 | 12.6 | 21.0 | 10.0 | 8.5-11.0 | 3750 lbs @ 65 psi. | 79 | 58072 |
| 37X14.50R20LT | E | 128Q | 36.9 | 14.5 | 21.0 | 11.5 | 10.0-13.0 | 3970 lbs @ 65 psi. | 89 | 58074 |
| 38X15.50R20LT | E | 128Q | 37.8 | 15.4 | 21.0 | 12.5 | 11.0-14.0 | 3970 lbs @ 65 psi. | 95 | 58085 |
| 42X13.50R20LT | D | 128Q | 41.8 | 13.8 | 22.0 | 11.0 | 9.0-11.5 | 3970 lbs @ 50 psi. | 104 | 249342 |
| 44X13.50R20LT | C | 128Q | 43.8 | 13.8 | 22.0 | 11.0 | 9.0-11.5 | 3970 lbs @ 35 psi. | 111 | 249343 |
| 33X12.50R22LT | F | 114Q | 32.7 | 12.3 | 21.0 | 10.0 | 8.5-11.0 | 2600 lbs @ 80 psi. | 68 | 58232 |
| 35X12.50R22LT | F | 121Q | 34.8 | 12.3 | 21.0 | 10.0 | 8.5-11.0 | 3195 lbs @ 80 psi. | 76 | 58252 |
| LT325/50R22 (35X13.00R22LT) | F | 127Q | 35.1 | 12.9 | 21.0 | 10.0 | 9.0-12.0 | 3860 lbs @ 80 psi. | 80 | 58253 |
| 37X13.50R22LT | F | 128Q | 36.9 | 13.4 | 21.0 | 11.0 | 8.5-12.0 | 3970 lbs @ 80 psi. | 82 | 58273 |
| 38X15.50R22LT | E | 128Q | 37.8 | 15.5 | 21.0 | 12.5 | 11.0-14.0 | 3970 lbs @ 65 psi. | 94 | 58285 |
| 37X14.50R24LT | F | 125Q | 37 | 14.1 | 21.0 | 11.5 | 10.0-13.0 | 3640 lbs @ 80 psi. | 88 | 58474 |
| 38X15.50R24LT | F | 128Q | 38 | 14.9 | 21.0 | 12.5 | 11.0-14.0 | 3970 lbs @ 80 psi. | 95 | 58485 |
