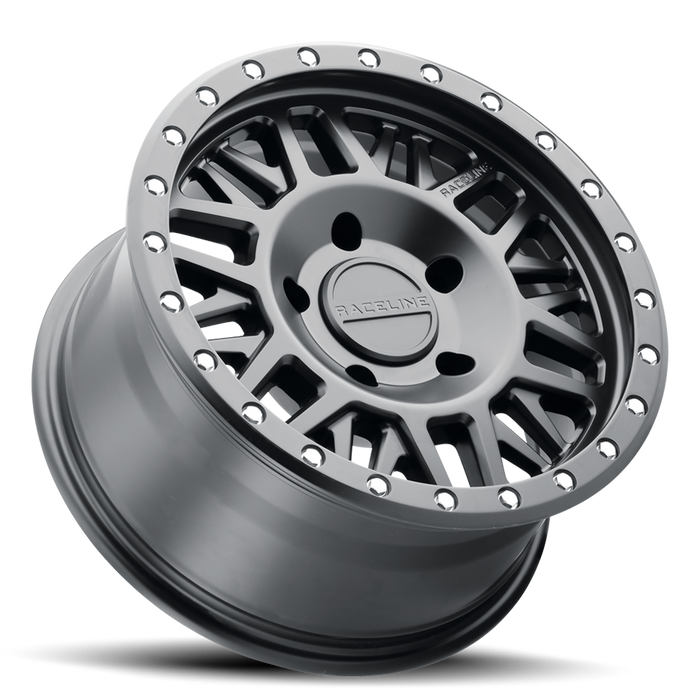

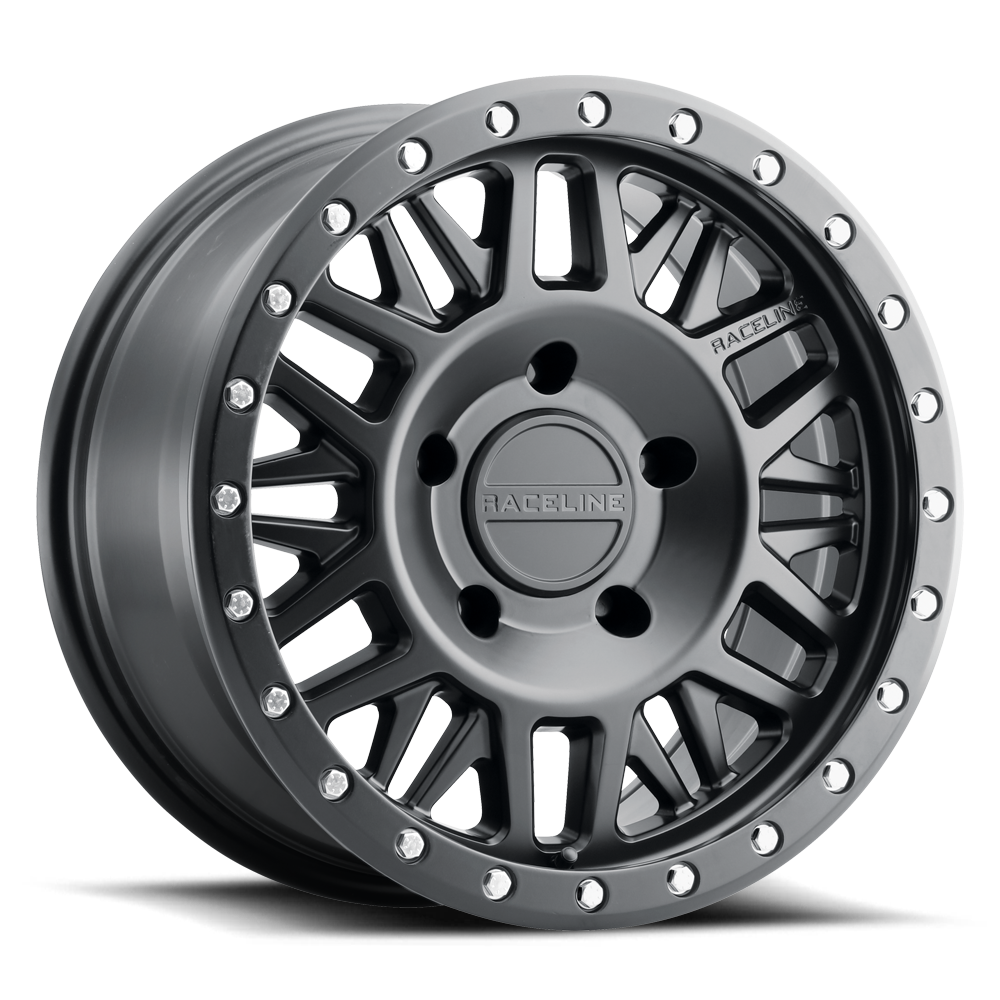

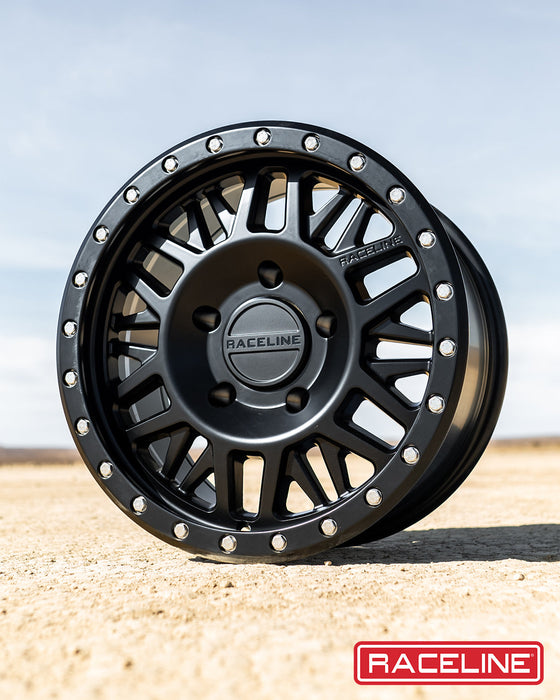

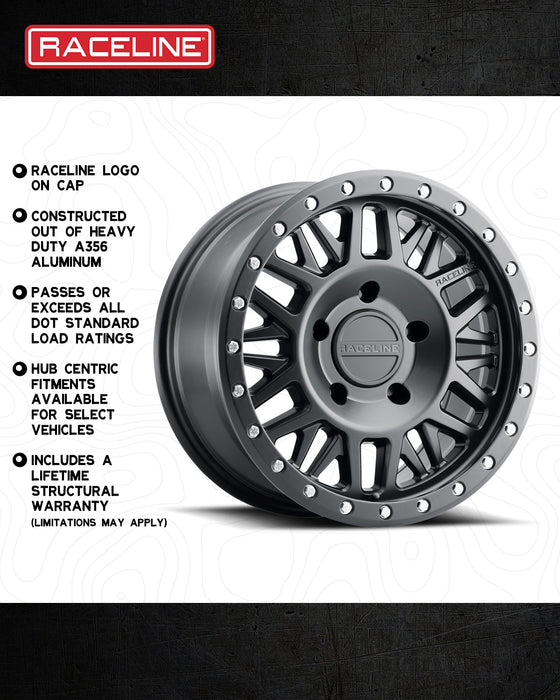

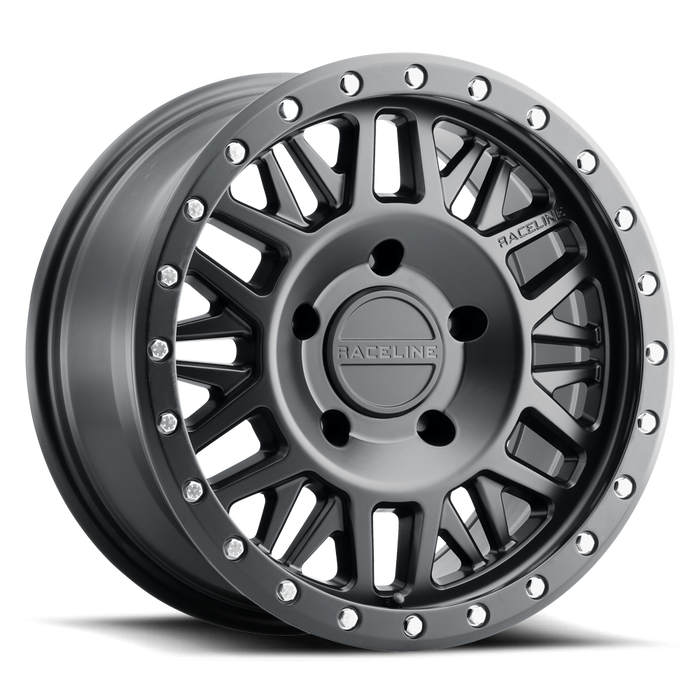

- The newest wheel in the Raceline Ryno family, this intimidating 6 spoke mesh design is an absolute beast and is ready for anything you can throw it's way.
- Debossed Raceline logo on spoke
- Simulated beadlock lip with stainless steel bolts
- Black Out snap in cap with contrasting embossed Raceline logo – Push thru cap for 8 lug applications
- Available in Satin Black, Textured Bronze and Machined finish
- Available in 17x8.5 in +0 and +18 offsets and 17x9 in -12 offset to fit most 5, 6 and 8 lug applications
Sizes & Specifications
| Size | Bolt Pattern | Offset | Weight (lb) | Part # |
|---|---|---|---|---|
| 16X8 | 6x139.7mm (6x5.5") | 0mm | 27.0 | 951B-68060-00 |
| 17X8.5 | 5x127mm (5x5") | 0mm | 38.0 | 951B-78550-00 |
| 17X8.5 | 6x139.7mm (6x5.5") | 18mm | 31.0 | 951B-78560+18 |
| 17X8.5 | 6x139.7mm (6x5.5") | 0mm | 31.0 | 951B-78560-00 |
| 17X8.5 | 6x135mm | 0mm | 31.0 | 951B-78565-00 |
| 17X9 | 5x127mm (5x5") | -12mm | 31.0 | 951B-79050-12 |
| 17X9 | 6x139.7mm (6x5.5") | -12mm | 34.0 | 951B-79060-12 |
| 17X9 | 6x135mm | -12mm | 34.0 | 951B-79065-12 |
| 17X9 | 8x165.1mm (8x6.5") | -12mm | 34.0 | 951B-79080-12 |
| 17X9 | 8x170mm | -12mm | 37.0 | 951B-79081-12 |
| 17X9 | 8x180mm | -12mm | 37.0 | 951B-79088-12 |
| 18X9 | 5x127mm (5x5") | 18mm | 33.0 | 951B-89050+18 |
| 18X9 | 6x139.7mm (6x5.5") | 18mm | 33.0 | 951B-89060+18 |
| 18X9 | 6x135mm | 18mm | 33.0 | 951B-89065+18 |
| 18X9 | 8x165.1mm (8x6.5") | 18mm | 33.0 | 951B-89080+18 |
| 18X9 | 8x170mm | 18mm | 33.0 | 951B-89081+18 |
| 18X9 | 8x180mm | 18mm | 33.0 | 951B-89088+18 |
Load rating(s): 2500, 3650 lb
Hub bore(s): 106.1, 130.81, 78.1, 87.1 mm
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
