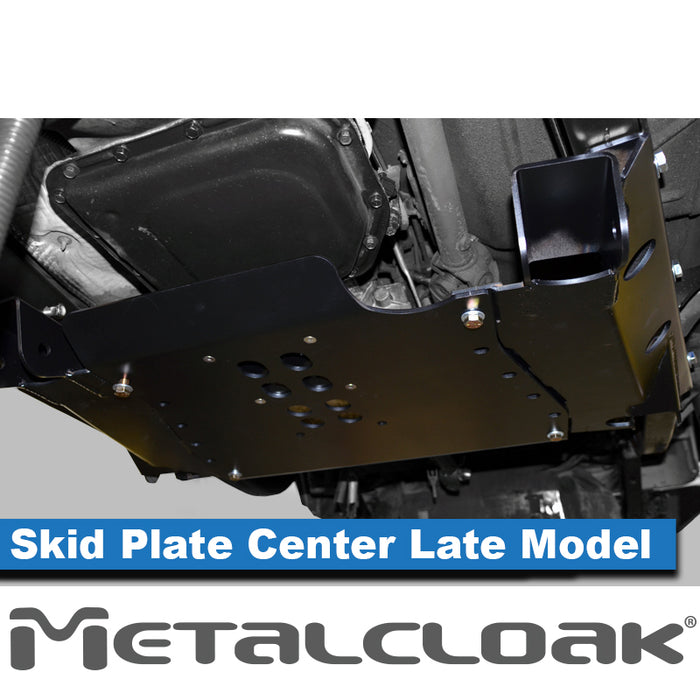

The MetalCloak TJ Long Arm Skid Plate Center Section is 1/4" plate steel that provides protection for the vulnerable underside of the Jeep and adds chassis Strength when used in conjunction with the frame mount brackets.
Features
- 1/4" Plate Steel Control arm Mounting Points
- Stiffens Chassis when combined with frame brackets
- Provides Easy Access to Transmission & Transfer Case
- Works with MetalCloak Boat-Sided Style 1/4" Steel Plate frame brackets
- Smooth flat skid surface with recessed hardware
- Front & Rear Approach and Departure Ramps Designed to Slide Up & Over the Rocks
- Stock or Aftermarket Transfer Cases OK
- Two Center Section Versions Available - Early or Late Model TJ's
- Finished in premium Black Texture Powder Coat
- Made in the USA
When used with the Frame Mount Brackets the 3 Piece 1/4" steel skid plate create a strong, smooth surfaced belly pan system with built in approach and departure angles that still provides convenient utility with easy access to the transmission & transfer case for servicing.
Hardware is recessed to keep snag free and is easily accessed. The center section is finished in our premium black texture powder coat.
The complete system will work with stock or aftermarket transfer cases
The long arm skid plate center section also comes in a early model ('97 - '02).
Specifications
- Compatibility: 1997 - 2006 Jeep TJ Wrangler | LJ Wrangler
- Center Skid Plate: 1/4" Hot Rolled Steel Plate
- Steel Coating: Black Powder Coat
Installation
- Installation Difficulty: Difficult - Licensed Installer Recommended
- Body Modification: Cutting & Welding
- Time to Install: 2 - 3 Hours
Important Notes
- sectionHeaderTitle">IMPORTANT NOTES
- Welding: This Kit Requires Welding at the Rear Axle.
- Suspension Alignment: We recommend you have a suspension specialist align your Jeep once a MetalCloak suspension is installed.
- <h1 class="
MetalCloak part #: 7089
