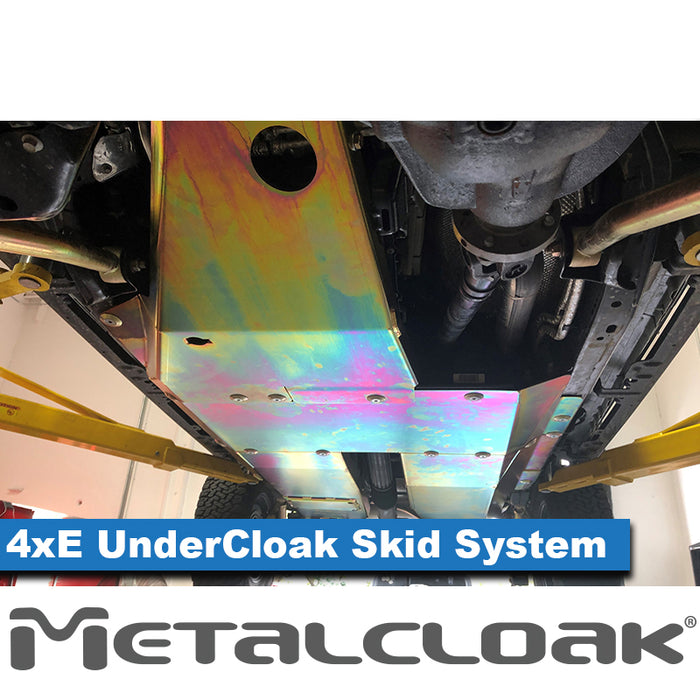

The best performing protection for the underside of your Jeep 4xE Wrangler. Our integrated boat-sided armor & skid plate system is the undisputed choice. Not just a couple of cut pieces of steel bolted to the bottom of a Jeep, the gold zinc-plated UnderCloak Armor is a complete formed system that covers vulnerabilities from the front to the back.
Features
- Fits 2021+ JL Wrangler 4xE
- Strong, Thick Formed & Welded Steel
- Gas Tank Skid Protection
- Oil Pan Skid Protection
- Transfer Case Skid Protection
- Battery Skid Protection
- Flush-Mount Hardware
- Boat-Sided Protection
- Gold Zinc Chromate Coating
- Made in the USA
The CAD-Designed, CNC-Formed, Laser-Cut thick steel sets the benchmark for strength throughout. It's engineered and designed with an enthusiast's perspective.

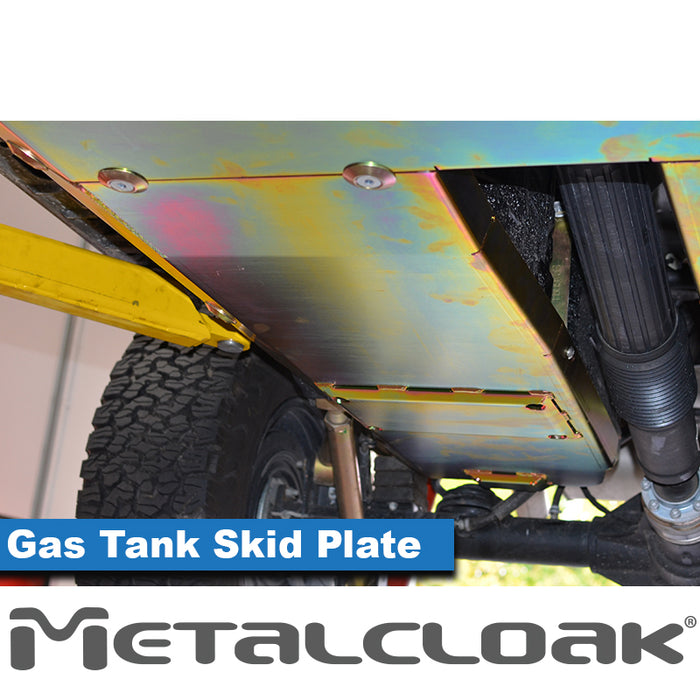

The boat-sided edges on the gas tank skid allow obstructions to glide past without catching your Jeep and causing you to get stuck.

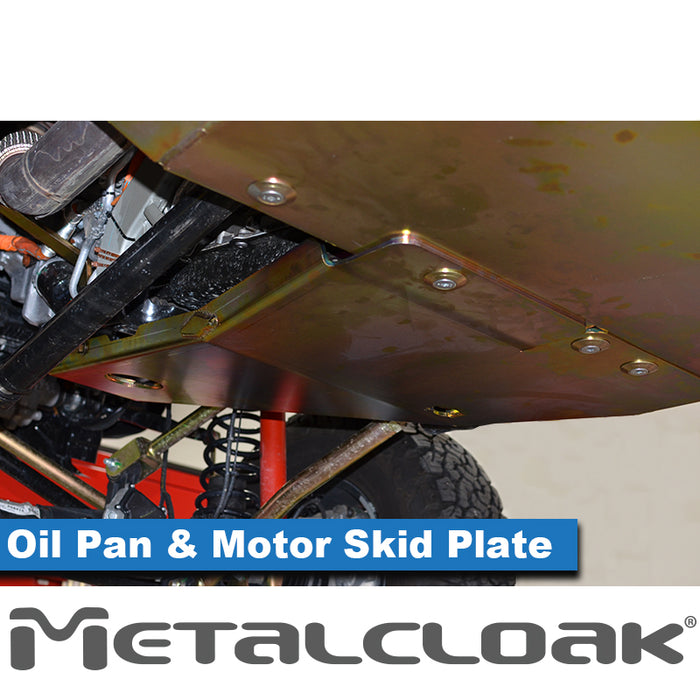

The 1/4" thick oil pan skid ensures objects have no effect on your essential fluids and is tucked up as far as possible to ensure clearance. The skid also allows access to reach your oil filter for service.
The transfer case skid plate is made of 3/16" hot-rolled steel and is boat-sided to protect your equipment and allow rocks and logs to slide under your Jeep without slowing you down.
The 4xE UnderCloak System comes with a battery skid plate to protect the vulnerable battery system.
The entire UnderCloak system is attached with hardware that has "skid guard washers" at all exposed mounting points.
The entire surface is protected with gold zinc plating that not only looks great, but also forms a molecular bond to the steel, protecting it from the elements even after being abused and keeping it looking good.
For the best performing protection for the underside of your 4xE Jeep Wrangler, trust MetalCloak's UnderCloak integrated armor system.
Specifications
- Compatibility: 2021+ JL Wrangler 4xE
- Gas Tank Skid Plate: 3/16" Hot-Rolled Steel Plate

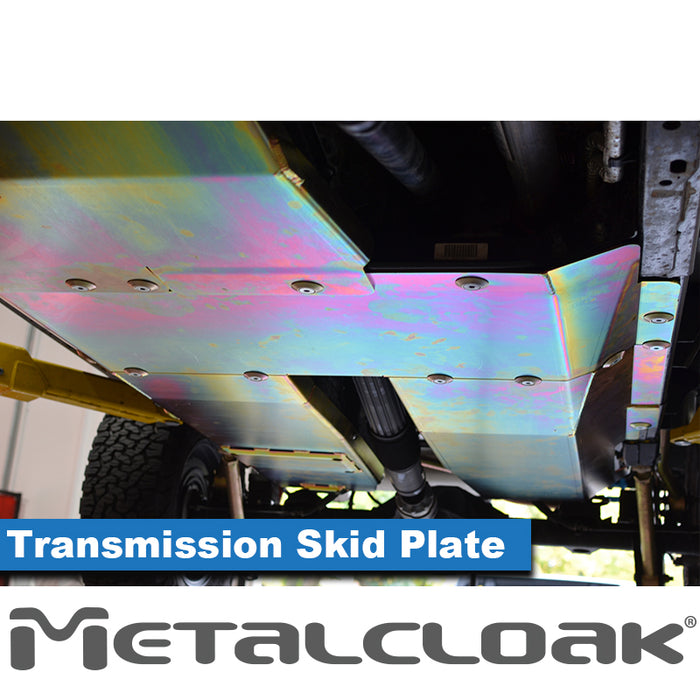

- Transmission Skid Plate: 3/16" Hot-Rolled Steel Plate
- Oil Pan/Motor Skid Plate: 1/4" Hot-Rolled Steel Plate
- Motor Gusset Straps: 3/8" Hot-Rolled Steel
- Battery Skid Plate: 3/16" Hot-Rolled Steel Plate
- Approximate Weight: 208 lbs
- Coating: Gold Zinc
Installation
- Difficulty: Moderate
- Body Modification: None
- Time to Install: 3-4 Hours
MetalCloak part #: 6388
