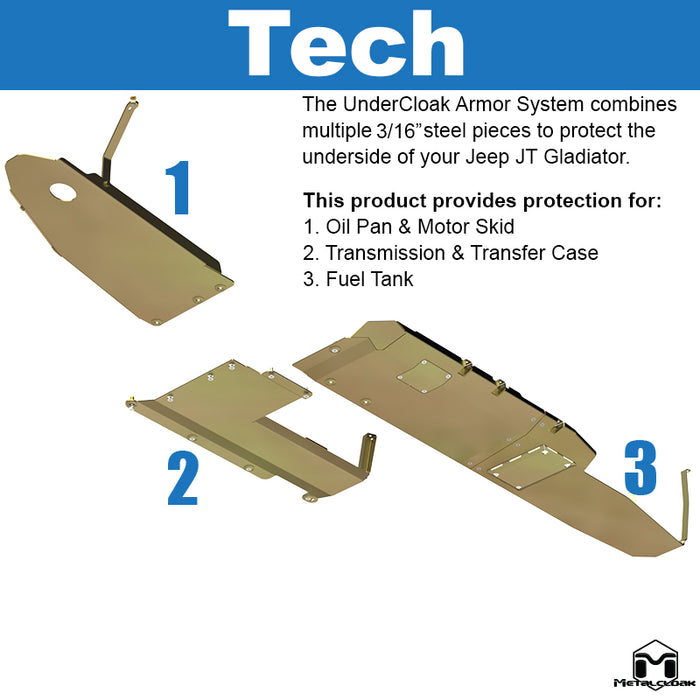

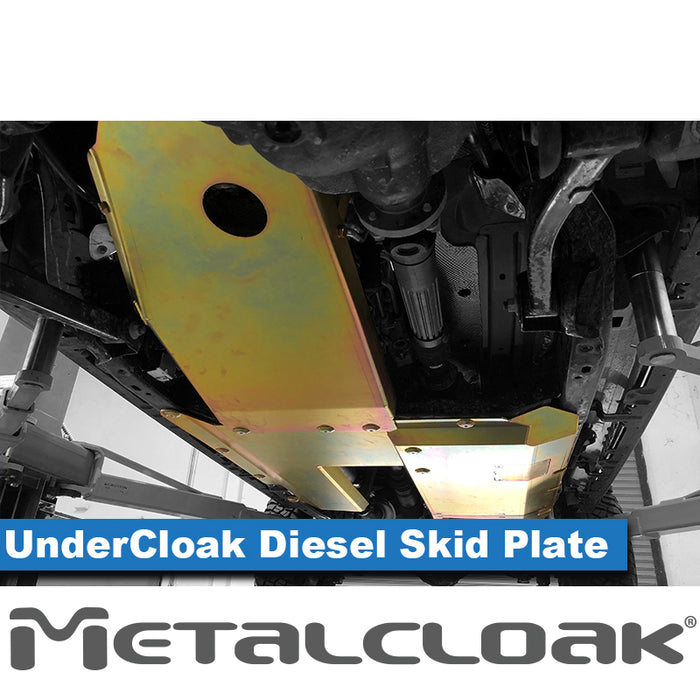

The best performing protection for the underside of your Diesel Jeep JT Gladiator. Our integrated boat-sided armor & skid plate system is the undisputed choice for your JT Gladiator. Not just a couple of cut pieces of steel bolted to the bottom of a Jeep, the gold zinc-plated UnderCloak Armor is a complete formed system that covers vulnerabilities from the front to the back.
Features
- Fits 2021-2023 JT Gladiator 3.0L EcoDiesel
- Strong Formed & Welded Steel
- Boat-Sided Gas Tank Skid Protection
- Transmission Skid Protection
- Fuel Filter Access
- Maximum Approach Oil Pan Skid Protection
- Boat-Sided Transfer Case Skid Protection
- Integrated Evap Canister Protection
- Flush-Mount Hardware
- Gold Zinc Plated for Protection Against the Elements

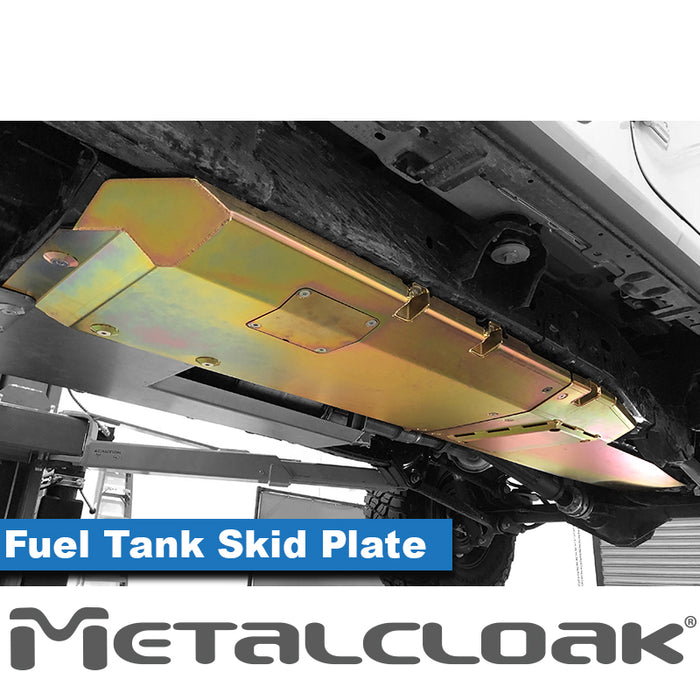

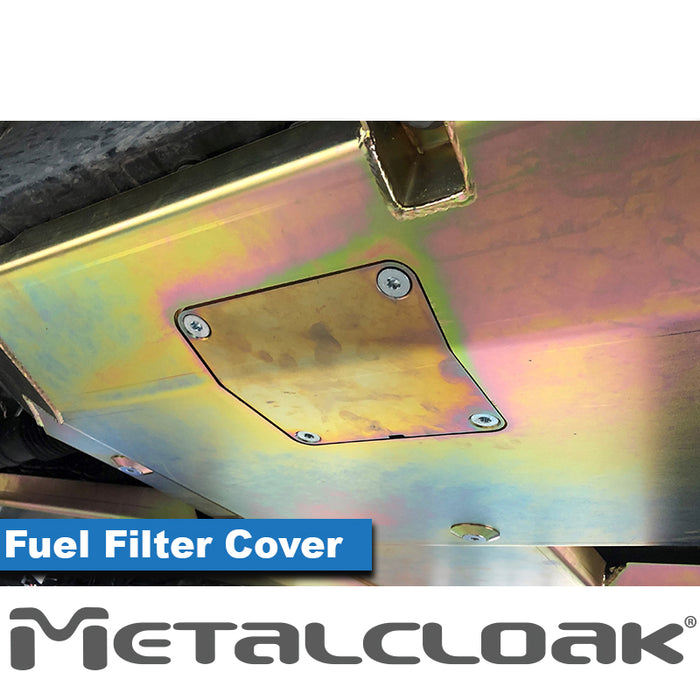

CAD-Designed, CNC-Formed, Laser-Cut steel sets the benchmark for strength throughout. Engineered with an enthusiast's perspective, the boat-sided edges on the fuel tank skid allow obstructions to glide past without catching your truck and causing you to get stuck, and it provides an access door for the diesel's fuel filter.

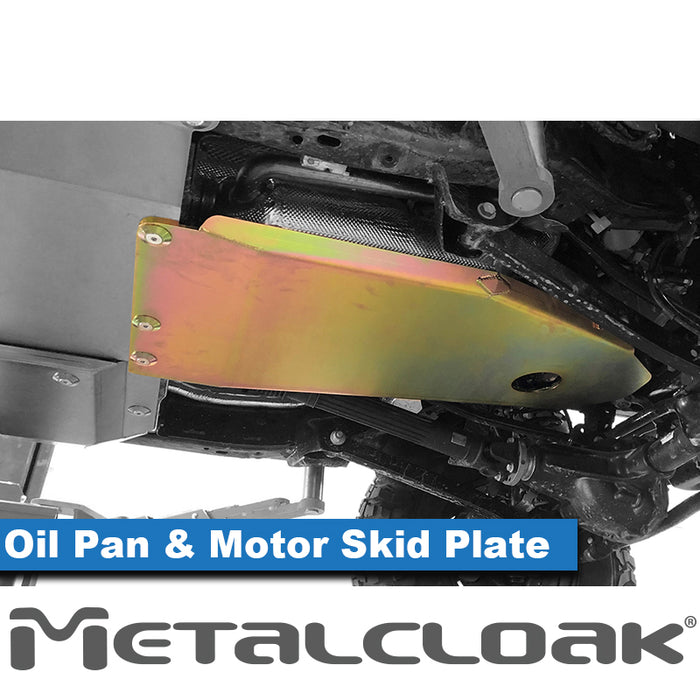

The oil pan skid ensures sharp objects have no effect and is tucked up as far as possible to ensure the best approach clearance. It also has integrated access to reach your oil filter.

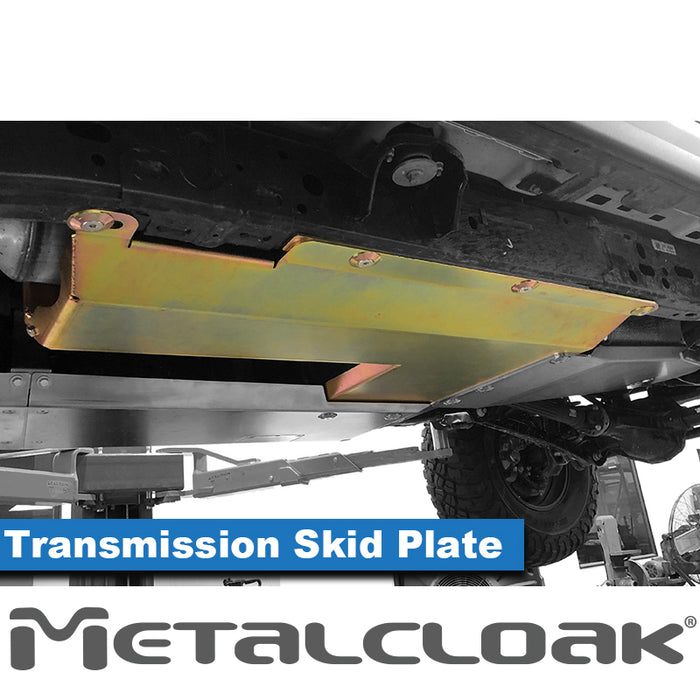

The transfer case skid plate is boat-sided, protecting your equipment and allowing rocks and logs to slide under your Jeep Gladiator without slowing you down.

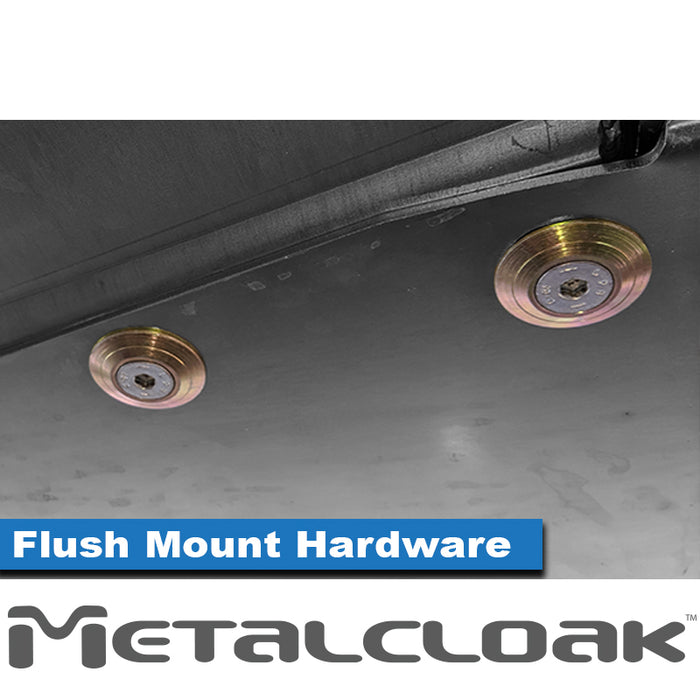

The entire UnderCloak system is attached with hardware that has "skid guard washers" at all exposed mounting points.
The entire surface is protected with gold zinc plating that not only looks great, but also forms a molecular bond to the steel, protecting it from the elements even after being abused and keeping it looking good.
For the best performing protection for the underside of your JT Gladiator, trust MetalCloak's UnderCloak integrated armor system.
Specifications
- Compatibility: 2021-2023 JT Gladiator 3.0L EcoDiesel
- Fuel Tank Skid Plate: 3/16" Hot-Rolled Steel
- Transmission Skid Plate: 3/16" Hot-Rolled Steel
- Oil Pan/Motor Skid Plate: 1/4" Hot-Rolled Steel
- Gusset Straps: 3/8" Hot-Rolled Steel
- Approximate Weight: 222 lbs
- Coating: Gold Zinc
Installation
- Difficulty: Moderate
- Body Modification: None
- Time to Install: 3-4 Hours
MetalCloak part #: 6358
