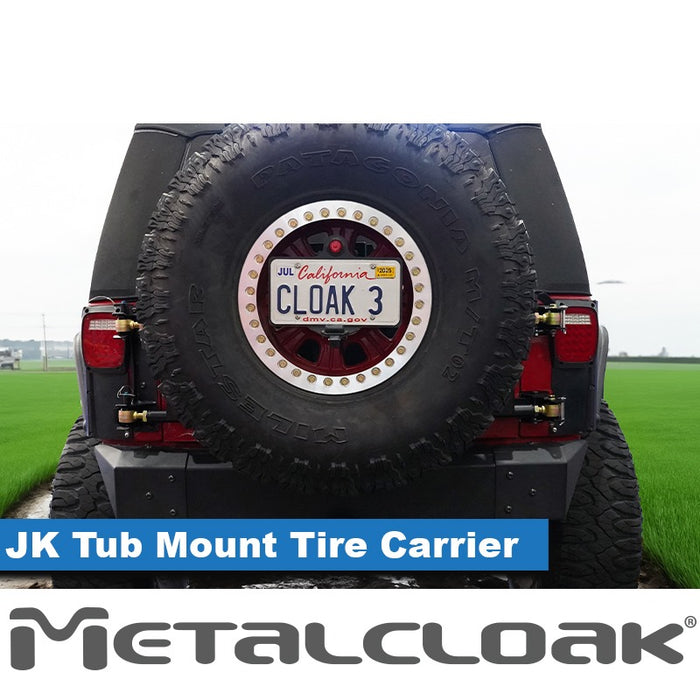

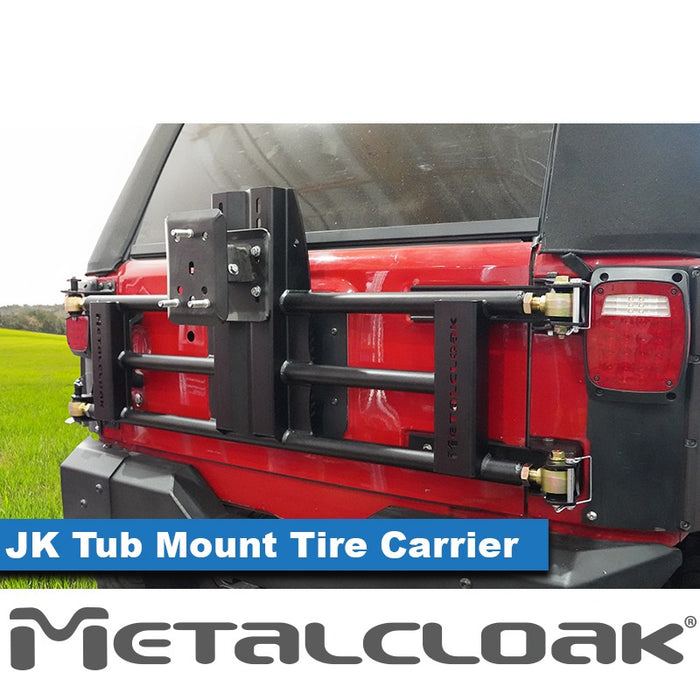

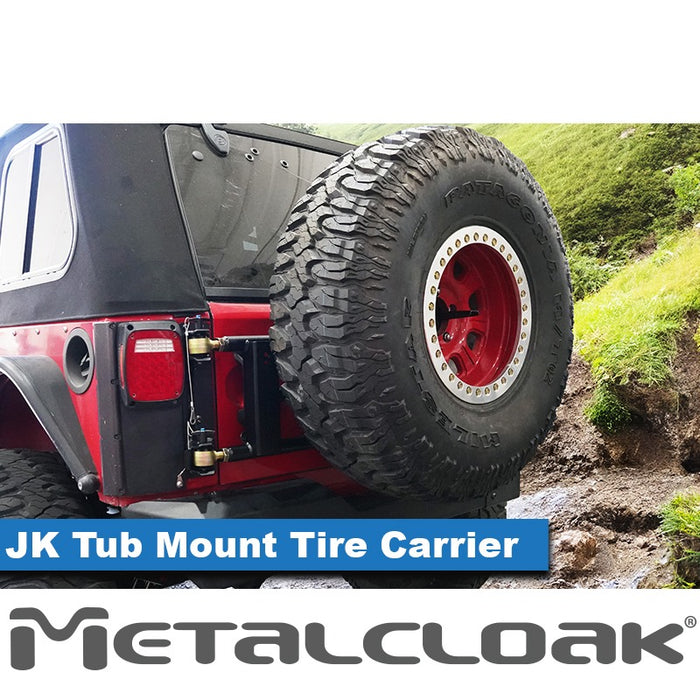

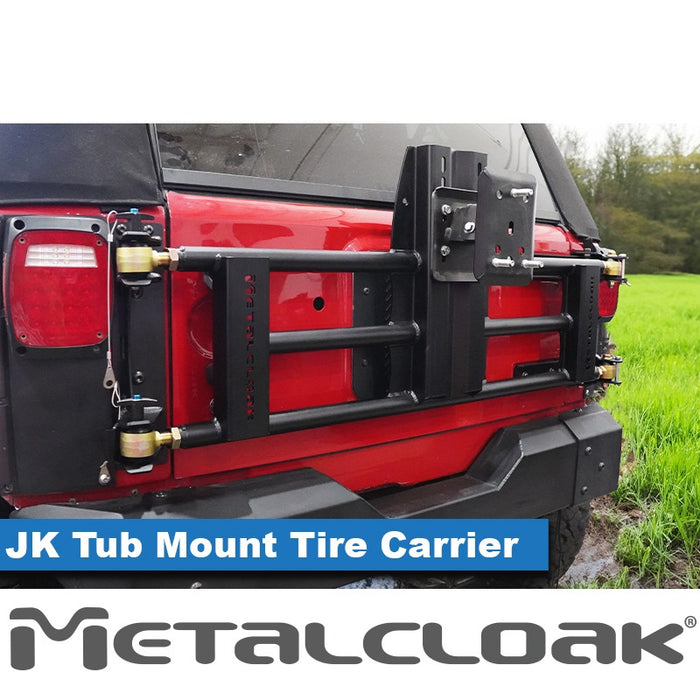

Tub-Mount Tire Carrier for the JK Jeep Wrangler; the strongest, no compromise design available to carry a spare tire on your Jeep. This tire carrier mounts to the factory tailgate hinge locations.
Features
- Heavy Duty Swing-Out Tire Carrier
- Easily Holds a 40" Tire
- 1.50 X .120 Wall Steel Tube
- 3/16" Steel Mount Plate & Gussets

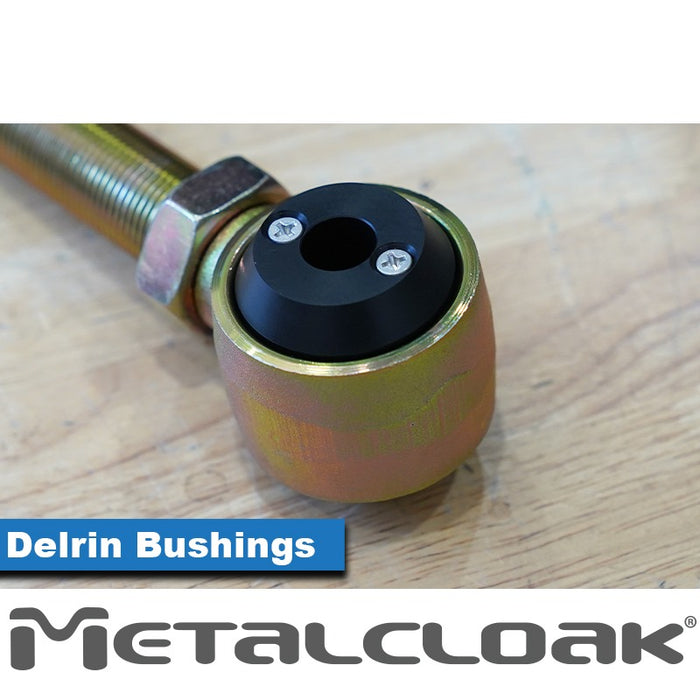

- Delrin Isolator Swing-Out Bushings

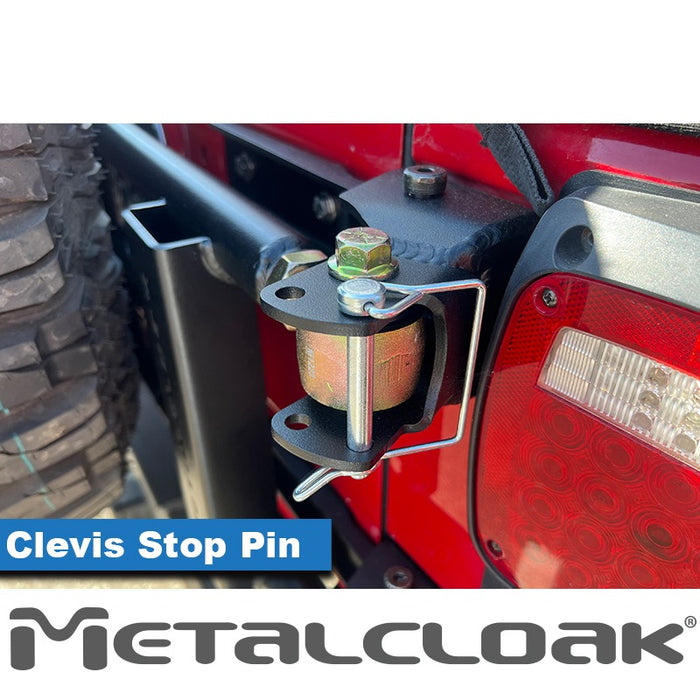

- Push Button Locking Pins & Swing Out Stop Pin
- Fully Adjustable for Backspacing and Tire Size
- Bracketry For Extra Tub Strength
- Optional "Tool-less" T Handle Removal
- Made in the USA

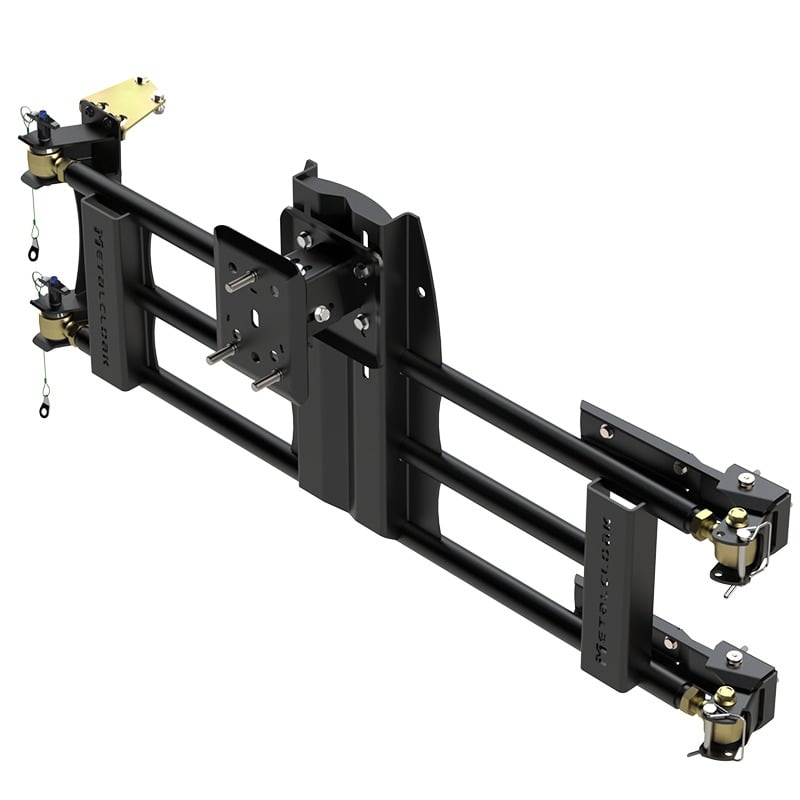

The MetalCloak JK tub mount is made strong with 1.50 X .120 wall steel tube and strengthened with 3/16" steel plate. The adjustable wheel/tire mount can accommodate a variety of wheel and tire sizes.
Swing-gate quick release lock pins hold tire carrier securely and feature push button attachment and release. This tire carrier will not shake or rattle and can handle whatever you throw at it.

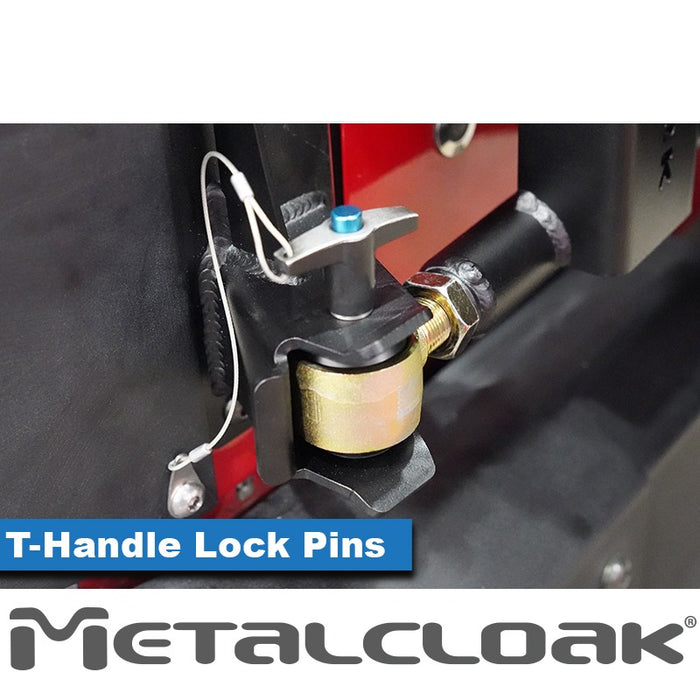

Carrier may be optioned with additional T-Handles (tool-less release) so that you may remove the carrier completely from the Jeep without need for tools.
Specifications
- Compatibility: 2007 - 2018 JK Wrangler
- Tub-Mount Tire Carrier: 3/16" Hot Rolled Steel 1.50 X .120 Wall Steel Tube
- Adjustment Brackets: 3/16" Hot Rolled Steel
- Bushing: Black Round Bar Delrin
- Steel Coating?: Black Powder Coat
Installation
- Installation Difficulty: Easy
- Body Modification: None
- Time to Install: 2 - 3 Hours
MetalCloak part #: 3970
