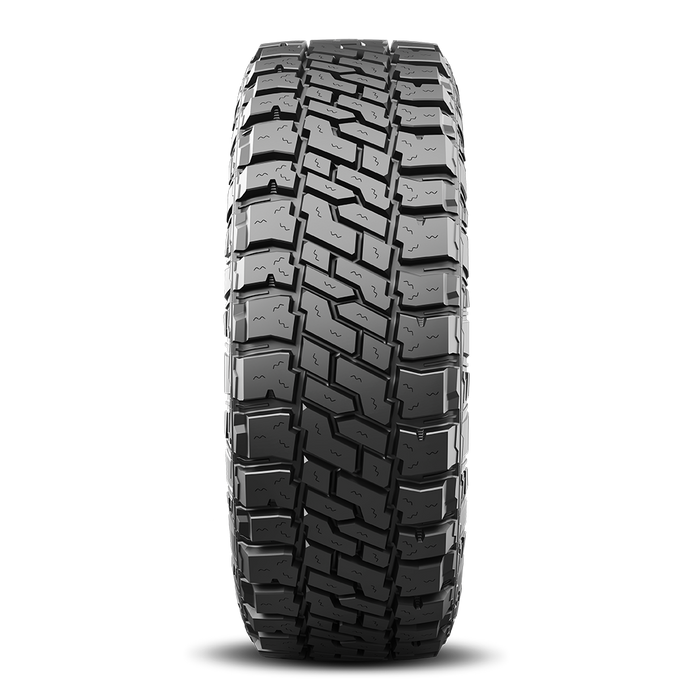

- Legendary “Baja Inspired” tread styling with large surface area tread elements/wide voids for an aggressive appearance and great on/off-road performance
- T4 Silica-Reinforced Compound provides excellent wet handling/braking performance, cut & chip resistance and lasting treadwear
- Next-gen lightweight high tensile body plies provide a smooth ride and durability
- Optimized tread design and geometry help to reduce noise
Sizes & Specifications
| Size | Load Range | Service | O.D. (in) | Section Width (in) | Tread Depth (32nds) | Measuring Rim (in) | Approved Rims (in) | Max Load / Infl. | Approx. Wt (lbs) | MT Part # |
|---|---|---|---|---|---|---|---|---|---|---|
| 31X10.50R15LT | C | 109Q | 30.8 | 10.9 | 18.5 | 8.5 | 7.0-9.0 | 2270 lbs @ 50 psi. | 45 | 52510 |
| 33X12.50R15LT | C | 108Q | 32.9 | 12.1 | 18.5 | 10.0 | 8.0-11.0 | 2205 lbs @ 35 psi. | 55 | 52532 |
| 35X12.50R15LT | C | 113Q | 34.9 | 12.2 | 18.5 | 10.0 | 8.0-11.0 | 2535 lbs @ 35 psi. | 60 | 52552 |
| LT245/70R16 (30X9.50R16LT) | E | 118Q | 29.8 | 9.8 | 18.5 | 7.0 | 6.5-8.0 | 2910 lbs @ 80 psi. | 46 | 52609 |
| LT265/70R16 (31X10.50R16LT) | E | 121Q | 30.9 | 10.7 | 18.5 | 8.0 | 7.0-9.0 | 3195 lbs @ 80 psi. | 50 | 52610 |
| LT265/75R16 (32X10.50R16LT) | E | 123Q | 31.9 | 10.1 | 18.5 | 7.5 | 7.0-9.0 | 3415 lbs @ 80 psi. | 50 | 52620 |
| LT285/75R16 (33X11.50R16LT) | E | 126Q | 33 | 11.3 | 18.5 | 8.0 | 7.5-9.5 | 3750 lbs @ 80 psi. | 57 | 52631 |
| LT305/70R16 (33X12.50R16LT) | E | 124Q | 33.1 | 12.0 | 18.5 | 9.0 | 8.0-10.0 | 3525 lbs @ 65 psi. | 58 | 52632 |
| LT315/75R16 (35X12.50R16LT) | E | 127Q | 34.8 | 11.9 | 18.5 | 8.5 | 8.0-11.0 | 3860 lbs @ 65 psi. | 64 | 52652 |
| LT265/65R17 (31X10.50R17LT) | E | 120Q | 30.8 | 10.6 | 18.5 | 8.0 | 7.5-9.5 | 3085 lbs @ 80 psi. | 50 | 52710 |
| LT265/70R17 (32X10.50R17LT) | E | 121Q | 31.9 | 10.8 | 18.5 | 8.0 | 7.0-9.0 | 3195 lbs @ 80 psi. | 54 | 272485 |
| LT275/70R17 (32X11.00R17LT) | E | 121Q | 32.5 | 10.7 | 18.5 | 8.0 | 7.0-9.0 | 3195 lbs @ 80 psi. | 55 | 272488 |
| LT285/70R17 (33X11.50R17LT) | E | 121Q | 33.1 | 11.5 | 18.5 | 8.5 | 7.5-9.5 | 3195 lbs @ 80 psi. | 57 | 272490 |
| LT305/65R17 (33X12.50R17LT) | E | 121Q | 32.9 | 12.3 | 18.5 | 9.0 | 8.5-11.0 | 3195 lbs @ 65 psi. | 60 | 52732 |
| LT295/70R17 (34X12.00R17LT) | E | 121Q | 33.6 | 11.8 | 18.5 | 8.5 | 7.5-10.0 | 3195 lbs @ 80 psi. | 59 | 52742 |
| 35X12.50R17LT | D | 119Q | 34.5 | 12.9 | 18.5 | 10.0 | 8.0-11.0 | 3000 lbs @ 50 psi. | 64 | 272404 |
| LT315/70R17 (35X12.50R17LT) | D | 121Q | 34.6 | 12.8 | 18.5 | 9.5 | 8.0-11.0 | 3195 lbs @ 50 psi. | 62 | 272406 |
| 37X12.50R17LT | D | 124Q | 36.4 | 13.1 | 18.5 | 10.0 | 8.0-11.0 | 3525 lbs @ 50 psi. | 70 | 272524 |
| LT265/60R18 (31X10.50R18LT) | E | 119Q | 30.5 | 10.7 | 18.5 | 8.0 | 7.5-9.5 | 3000 lbs @ 80 psi. | 51 | 272564 |
| LT275/65R18 (32X11.00R18LT) | E | 123Q | 32.3 | 11.0 | 18.5 | 8.0 | 7.5-9.5 | 3415 lbs @ 80 psi. | 53 | 52821 |
| LT265/70R18 (33X10.50R18LT) | E | 124Q | 32.9 | 10.7 | 18.5 | 8.0 | 7.0-9.0 | 3525 lbs @ 80 psi. | 54 | 52830 |
| LT275/70R18 (33X11.00R18LT) | E | 125Q | 33.4 | 11.0 | 18.5 | 8.0 | 7.0-9.0 | 3640 lbs @ 80 psi. | 55 | 272492 |
| LT285/65R18 (33X11.50R18LT) | E | 125Q | 33 | 11.5 | 18.5 | 8.5 | 8.0-10.0 | 3640 lbs @ 80 psi. | 58 | 52831 |
| LT305/60R18 (33X12.50R18LT) | F | 126Q | 32.5 | 12.1 | 18.5 | 9.0 | 8.5-11.0 | 3750 lbs @ 80 psi. | 64 | 52832 |
| LT295/70R18 (34X12.00R18LT) | E | 129Q | 34.4 | 12.0 | 18.5 | 8.5 | 7.5-10.0 | 4080 lbs @ 80 psi. | 61 | 52842 |
| 35X12.50R18LT | D | 118Q | 34.5 | 12.6 | 18.5 | 10.0 | 8.5-11.0 | 2910 lbs @ 50 psi. | 65 | 52859 |
| LT305/70R18 (35X12.50R18LT) | E | 126Q | 35.1 | 12.5 | 18.5 | 9.0 | 8.0-10.0 | 3750 lbs @ 65 psi. | 65 | 52852 |
| LT275/55R20 (32X11.00R20LT) | E | 120Q | 32.3 | 10.8 | 18.5 | 8.5 | 7.5-9.5 | 3085 lbs @ 80 psi. | 57 | 272526 |
| LT265/60R20 (33X10.50R20LT) | E | 121Q | 32.9 | 10.6 | 18.5 | 8.0 | 7.5-9.5 | 3195 lbs @ 80 psi. | 56 | 52030 |
| LT275/60R20 (33X11.00R20LT) | E | 123Q | 32.9 | 10.9 | 18.5 | 8.0 | 7.5-9.5 | 3415 lbs @ 80 psi. | 59 | 272528 |
| LT285/55R20 (33X11.50R20LT) | E | 122Q | 32.6 | 11.7 | 18.5 | 9.0 | 8.0-10.0 | 3305 lbs @ 80 psi. | 59 | 272494 |
| LT295/55R20 (33X12.00R20LT) | E | 123Q | 33.1 | 11.7 | 18.5 | 9.5 | 8.0-10.5 | 3415 lbs @ 80 psi. | 63 | 52038 |
| 33X12.50R20LT | E | 114Q | 32.8 | 12.6 | 18.5 | 10.0 | 8.5-11.0 | 2600 lbs @ 65 psi. | 63 | 52039 |
| LT305/55R20 (33X12.50R20LT) | F | 125Q | 33.4 | 12.5 | 18.5 | 9.5 | 8.5-11.0 | 3640 lbs @ 80 psi. | 64 | 52032 |
| LT275/65R20 (34X11.00R20LT) | E | 126Q | 34.7 | 11.5 | 18.5 | 8.0 | 7.5-9.5 | 3750 lbs @ 80 psi. | 61 | 52041 |
| LT285/60R20 (34X11.50R20LT) | E | 125Q | 33.9 | 11.4 | 18.5 | 8.5 | 8.0-10.0 | 3640 lbs @ 80 psi. | 62 | 52048 |
| LT295/60R20 (34X12.00R20LT) | E | 126Q | 34.3 | 11.6 | 18.5 | 8.5 | 8.0-10.5 | 3750 lbs @ 80 psi. | 63 | 52042 |
| LT295/65R20 (35X12.00R20LT) | E | 129Q | 35.4 | 11.6 | 18.5 | 8.5 | 8.0-10.5 | 4080 lbs @ 80 psi. | 66 | 52058 |
| 35X12.50R20LT | F | 125Q | 34.8 | 12.5 | 18.5 | 10.0 | 8.5-11.0 | 3640 lbs @ 80 psi. | 65 | 272496 |
| 37X12.50R20LT | E | 126Q | 36.5 | 12.4 | 18.5 | 10.0 | 8.5-11.0 | 3750 lbs @ 65 psi. | 68 | 52072 |
| 37X13.50R20LT | E | 127Q | 36.5 | 13.3 | 18.5 | 11.0 | 8.5-12.0 | 3860 lbs @ 65 psi. | 74 | 272530 |
