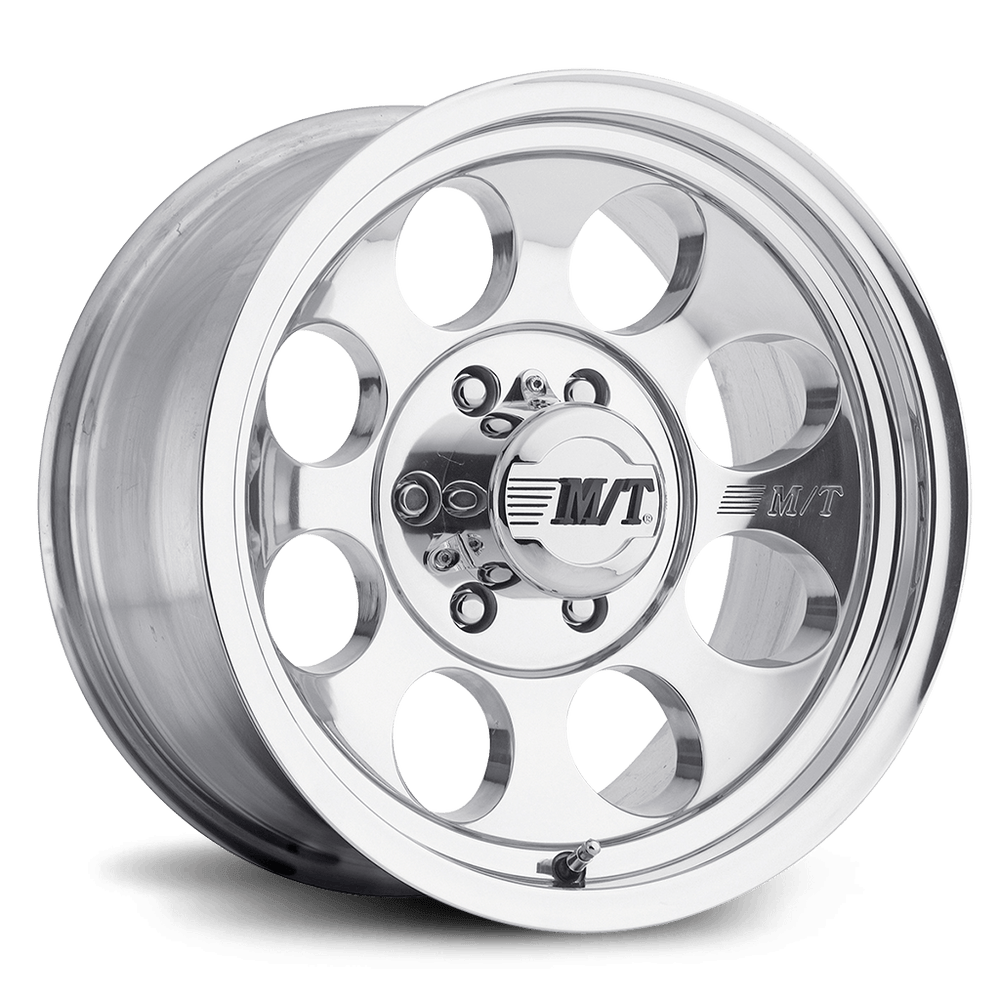

The Mickey Thompson Classic III wheel features the classic 8-Hole design in a highly polished finish that includes matching polished hand holes. The embossed M/T logo is assurance of quality, strength and dependability. The Classic III is available in sizes 15x8 through 17x9.
- Redesigned smooth outer lip for clean appearance
- Unique sizing includes 15x12 and 16x12
- Non-corrosive screw on center cap
- Lifetime Limited Warranty against structural defects
Sizes & Specifications
| Size | Bolt Pattern | Offset | Backspace (in) | Hub Bore (mm) | Max Load (lb) | Weight (lb) | Part # |
|---|---|---|---|---|---|---|---|
| 15X10 | 5x114.3mm (5x4.5") | -45mm | 3.6 | 81.48 | 1900 | 22.0 | 2350421 |
| 15X10 | 5x139.7mm (5x5.5") | -45mm | 3.6 | 106.50 | 2500 | 21.0 | 2350402 |
| 15X10 | 6x139.7mm (6x5.5") | -45mm | 3.6 | 106.10 | 2500 | 22.0 | 2350412 |
| 15X12 | 5x139.7mm (5x5.5") | -73mm | 3.6 | 106.50 | 2500 | 24.0 | 2352402 |
| 15X12 | 6x139.7mm (6x5.5") | -73mm | 3.6 | 106.10 | 2500 | 24.0 | 2352412 |
| 15X8 | 5x114.3mm (5x4.5") | -22mm | 3.6 | 81.48 | 1900 | 19.0 | 2358421 |
| 15X8 | 5x139.7mm (5x5.5") | -22mm | 3.6 | 106.50 | 1900 | 18.0 | 2358402 |
| 15X8 | 6x139.7mm (6x5.5") | -22mm | 3.6 | 106.10 | 1900 | 18.0 | 2358412 |
| 16X10 | 6x139.7mm (6x5.5") | -25mm | 4.5 | 106.10 | 2500 | 26.0 | 2360412 |
| 16X10 | 8x170mm | -25mm | 4.5 | 125.20 | 3500 | 27.0 | 2360170 |
| 16X10 | 8x165.1mm (8x6.5") | -25mm | 4.5 | 125.20 | 3250 | 27.0 | 2360482 |
| 16X12 | 8x170mm | -50mm | 4.5 | 125.20 | 3500 | 30.0 | 2362170 |
| 16X12 | 8x165.1mm (8x6.5") | -50mm | 4.5 | 125.20 | 3250 | 29.0 | 2362482 |
| 16X8 | 5x114.3mm (5x4.5") | 0mm | 4.5 | 81.48 | 1900 | 23.0 | 2368421 |
| 16X8 | 5x139.7mm (5x5.5") | 0mm | 4.5 | 106.50 | 2500 | 23.0 | 2368402 |
| 16X8 | 6x139.7mm (6x5.5") | 0mm | 4.5 | 106.10 | 2500 | 23.0 | 2368412 |
| 16X8 | 6x139.7mm (6x5.5") | -22mm | 3.6 | 106.10 | 2500 | 25.0 | 2368413 |
| 16X8 | 8x170mm | -12mm | 4.0 | 125.20 | 3500 | 25.0 | 2368170 |
| 16X8 | 8x165.1mm (8x6.5") | -12mm | 4.0 | 125.20 | 3250 | 25.0 | 2368482 |
| 17X12 | 5x127mm (5x5") | -58mm | 4.2 | 78.10 | 2500 | 24.0 | 277005 |
| 17X12 | 5x139.7mm (5x5.5") | -74mm | 3.6 | 108.10 | 2500 | 25.0 | 277006 |
| 17X12 | 6x139.7mm (6x5.5") | -74mm | 3.6 | 108.10 | 2500 | 25.0 | 277007 |
| 17X12 | 6x139.7mm (6x5.5") | -58mm | 4.2 | 108.10 | 2500 | 25.0 | 277008 |
| 17X12 | 8x170mm | -58mm | 4.2 | 125.20 | 3500 | 25.0 | 277011 |
| 17X12 | 8x180mm | -58mm | 4.2 | 125.20 | 3500 | 25.0 | 277012 |
| 17X12 | 8x165.1mm (8x6.5") | -74mm | 3.6 | 125.20 | 3500 | 26.0 | 277009 |
| 17X12 | 8x165.1mm (8x6.5") | -58mm | 4.2 | 125.20 | 3500 | 25.0 | 277010 |
| 17X9 | 5x127mm (5x5") | -12mm | 4.5 | 78.08 | 2500 | 30.0 | 2379431 |
| 17X9 | 5x139.7mm (5x5.5") | -12mm | 4.5 | 106.50 | 2500 | 29.0 | 2379402 |
| 17X9 | 6x139.7mm (6x5.5") | -12mm | 4.5 | 106.10 | 2500 | 29.0 | 2379412 |
| 17X9 | 8x170mm | 0mm | 5.0 | 125.20 | 3500 | 27.0 | 2379170 |
| 17X9 | 8x165.1mm (8x6.5") | 0mm | 5.0 | 125.20 | 3250 | 27.0 | 2379482 |
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
