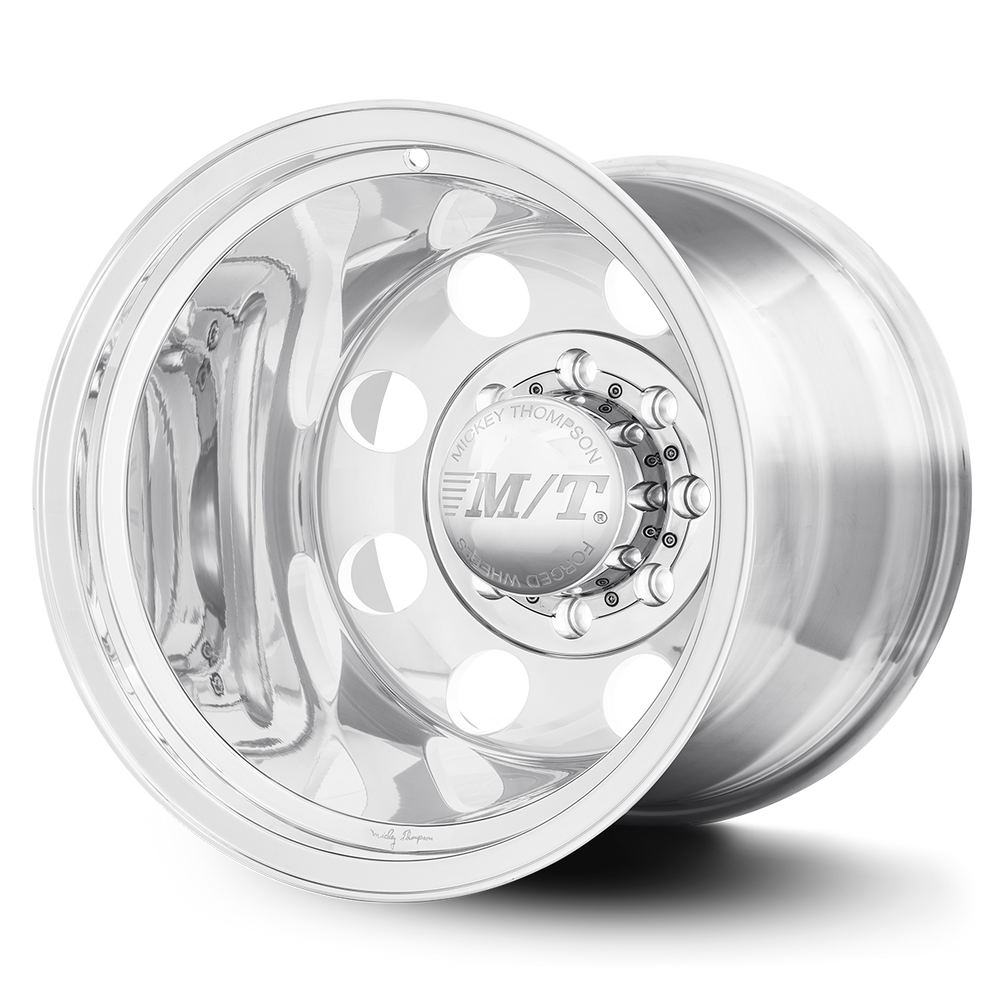

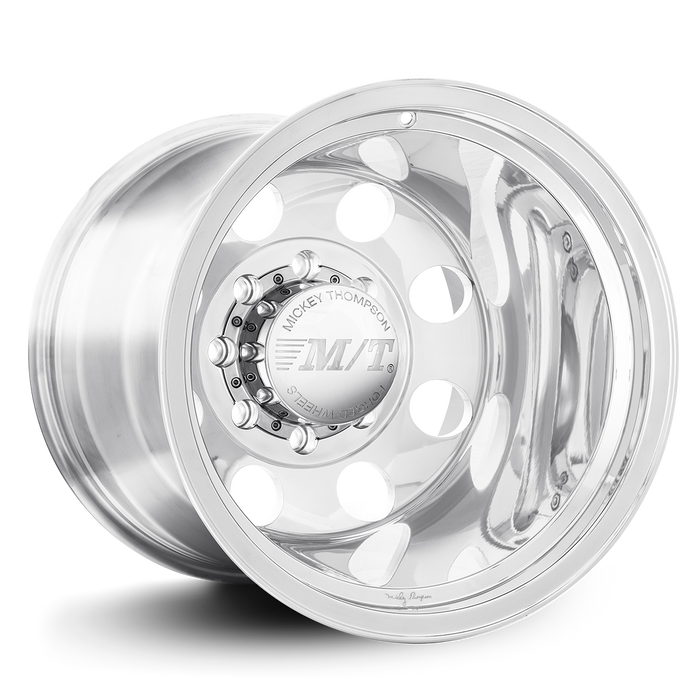

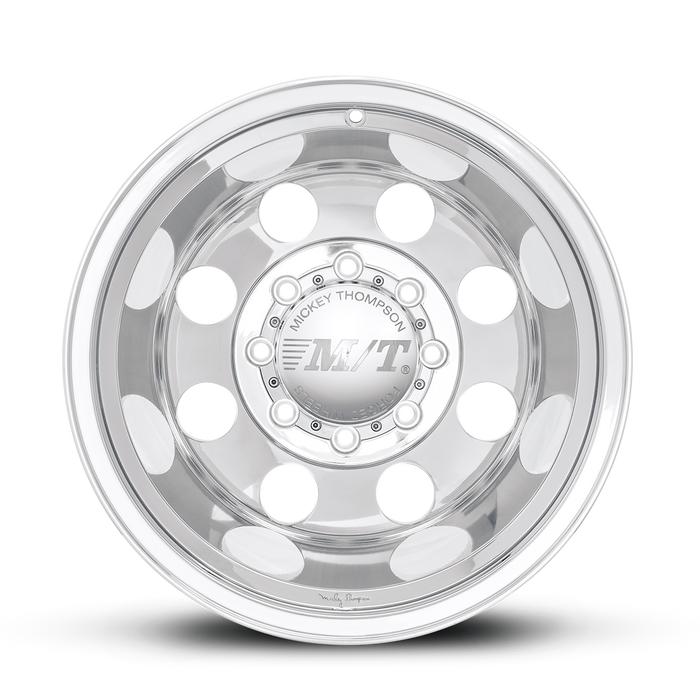

The all-new MT Classic Forged wheel takes the iconic Classic 8-hole wheel design to the next level with modern enhancements. Monoblock forged construction with 6061-T6 aircraft aluminum is utilized for superior strength, lighter weight, and enhanced performance compared to traditional die-cast wheels. Showcased in a brilliant white Polished finish, this wheel is available in extreme 14" and 16" widths and aggressive 3.5" backspacing. Backed by a Lifetime Limited Structural Warranty, the MT Classic Forged wheel is the perfect choice for both classic and modern builds.
- Monoblock forged wheel for enhanced light weight performance and strength
- 6061-T6 aircraft aluminum for high corrosion resistance and improved durability
- Classic 8-hole face design with a step lip and deep barrel
- Independently tested to strictly adhere to SAE-J2530 requirements
- Available in 17" wheel diameter
- Lifetime Limited Structural Warranty
Sizes & Specifications
| Size | Bolt Pattern | Offset | Backspace (in) | Hub Bore (mm) | Max Load (lb) | Weight (lb) | Part # |
|---|---|---|---|---|---|---|---|
| 17X14 | 5x127mm (5x5") | -101mm | 3.5 | 78.10 | 2500 | 26.0 | 278568 |
| 17X14 | 5x139.7mm (5x5.5") | -101mm | 3.5 | 108.10 | 2500 | 26.0 | 277338 |
| 17X14 | 6x139.7mm (6x5.5") | -101mm | 3.5 | 108.10 | 2500 | 26.0 | 277339 |
| 17X14 | 8x170mm | -101mm | 3.5 | 125.20 | 4000 | 28.0 | 277621 |
| 17X14 | 8x180mm | -101mm | 3.5 | 125.20 | 4000 | 28.0 | 277622 |
| 17X14 | 8x165.1mm (8x6.5") | -101mm | 3.5 | 125.20 | 4000 | 28.0 | 277340 |
| 17X16 | 5x127mm (5x5") | -127mm | 3.5 | 78.10 | 2500 | 28.0 | 278569 |
| 17X16 | 5x139.7mm (5x5.5") | -127mm | 3.5 | 108.10 | 2500 | 28.0 | 277623 |
| 17X16 | 6x139.7mm (6x5.5") | -127mm | 3.5 | 108.10 | 2500 | 28.0 | 277624 |
| 17X16 | 8x170mm | -127mm | 3.5 | 125.20 | 4000 | 29.0 | 277626 |
| 17X16 | 8x180mm | -127mm | 3.5 | 125.20 | 4000 | 29.0 | 277629 |
| 17X16 | 8x165.1mm (8x6.5") | -127mm | 3.5 | 125.20 | 4000 | 29.0 | 277625 |
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
