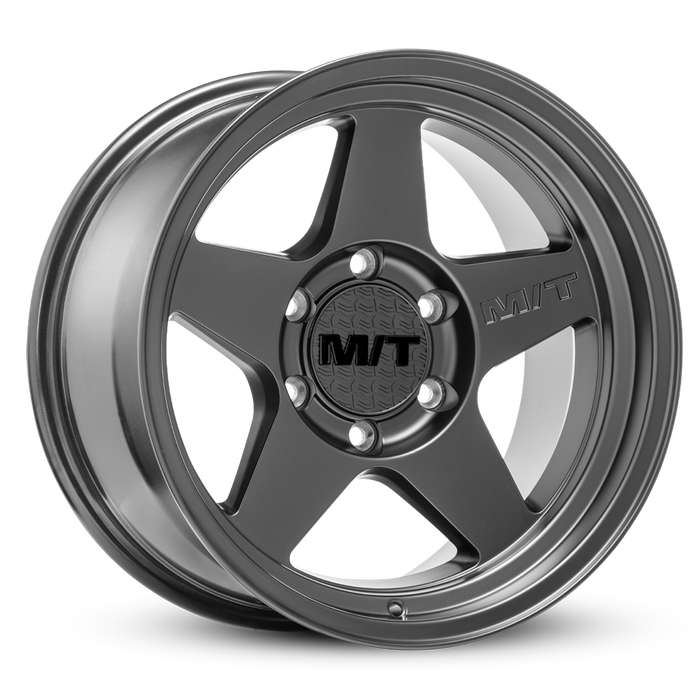

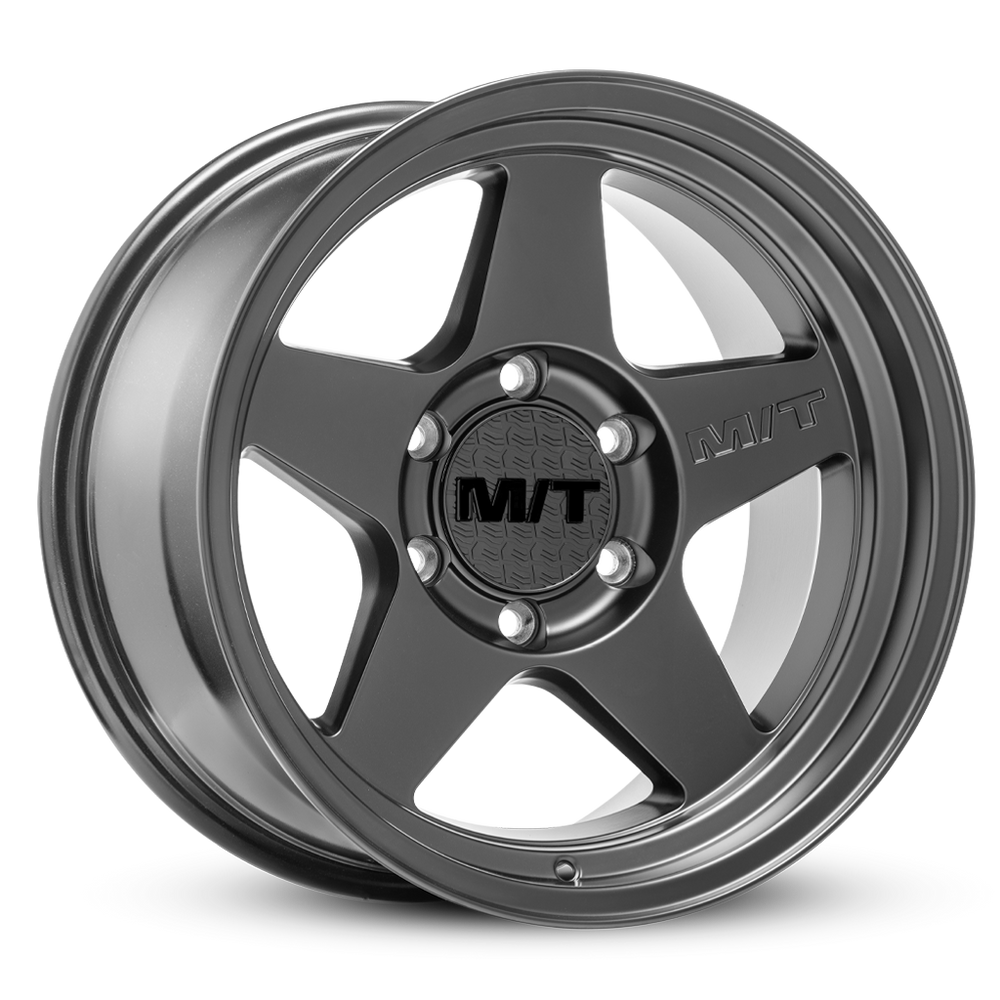

The MT Open 5 is a wheel designed for trucks and SUVs, perfect for adventurers who want to stand out. Featuring a modern 5-spoke design, a 2-step lip, and a Satin Black finish for a bold, clean look.
- A sharp, bold, and modern 5-spoke design
- Modern M/T Tread press-in cap
- 17", 18", and 20" diameter options
- Lifetime Limited Warranty against structural defects
- One-Year Finish Warranty
Sizes & Specifications
| Size | Bolt Pattern | Offset | Backspace (in) | Hub Bore (mm) | Max Load (lb) | Weight (lb) | Part # |
|---|---|---|---|---|---|---|---|
| 17X9 | 5x127mm (5x5") | -12mm | 4.5 | 71.60 | 2500 | 23.0 | 274270 |
| 17X9 | 5x139.7mm (5x5.5") | -12mm | 4.5 | 108.10 | 2500 | 23.0 | 274531 |
| 17X9 | 6x120mm | -5mm | 4.8 | 67.00 | 2500 | 23.0 | 274532 |
| 17X9 | 6x135mm | -12mm | 4.5 | 87.10 | 2500 | 23.0 | 274534 |
| 17X9 | 6x139.7mm (6x5.5") | 0mm | 5.0 | 108.10 | 2500 | 23.0 | 274535 |
| 17X9 | 6x139.7mm (6x5.5") | -12mm | 4.5 | 108.10 | 2500 | 23.0 | 274536 |
| 18X9 | 5x150mm | 0mm | 5.0 | 110.10 | 2500 | 24.0 | 274539 |
| 18X9 | 5x127mm (5x5") | -12mm | 4.5 | 71.60 | 2500 | 24.0 | 274537 |
| 18X9 | 5x139.7mm (5x5.5") | 0mm | 5.0 | 108.10 | 2500 | 24.0 | 274538 |
| 18X9 | 6x120mm | -5mm | 4.8 | 67.00 | 2500 | 24.0 | 274540 |
| 18X9 | 6x135mm | 0mm | 5.0 | 87.10 | 2500 | 24.0 | 274541 |
| 18X9 | 6x139.7mm (6x5.5") | 0mm | 5.0 | 108.10 | 2500 | 24.0 | 274542 |
| 20X9 | 5x150mm | 0mm | 5.0 | 110.10 | 2500 | 29.0 | 274545 |
| 20X9 | 5x127mm (5x5") | 0mm | 5.0 | 71.60 | 2500 | 29.0 | 274543 |
| 20X9 | 5x139.7mm (5x5.5") | 0mm | 5.0 | 108.10 | 2500 | 29.0 | 274544 |
| 20X9 | 6x135mm | 0mm | 5.0 | 87.10 | 2500 | 29.0 | 274546 |
| 20X9 | 6x139.7mm (6x5.5") | 0mm | 5.0 | 108.10 | 2500 | 29.0 | 274547 |
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
