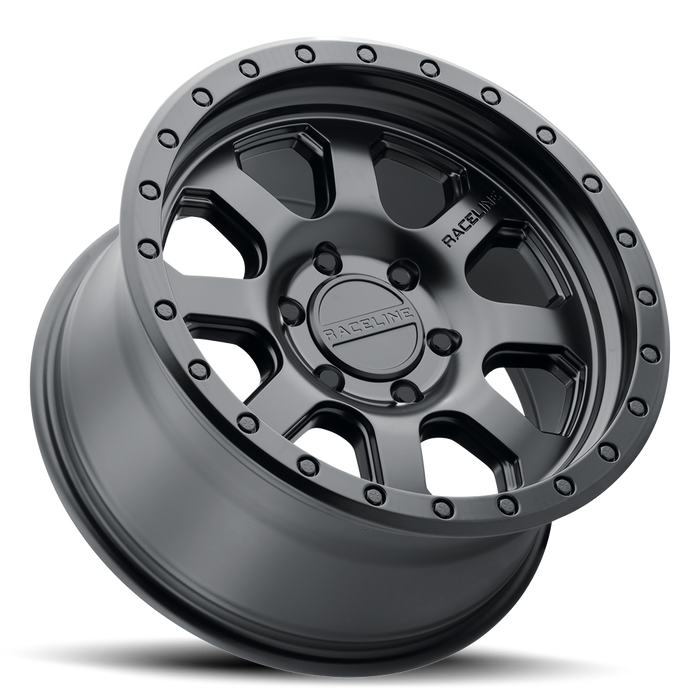

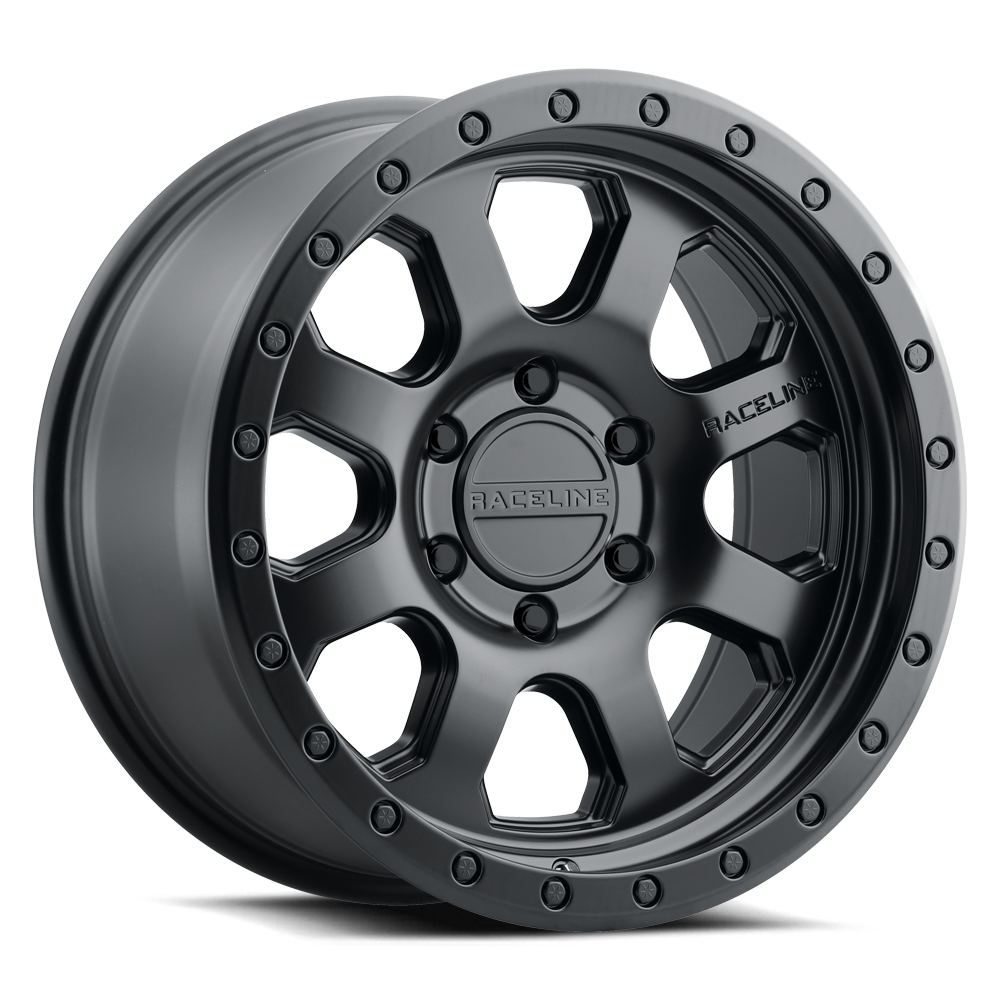

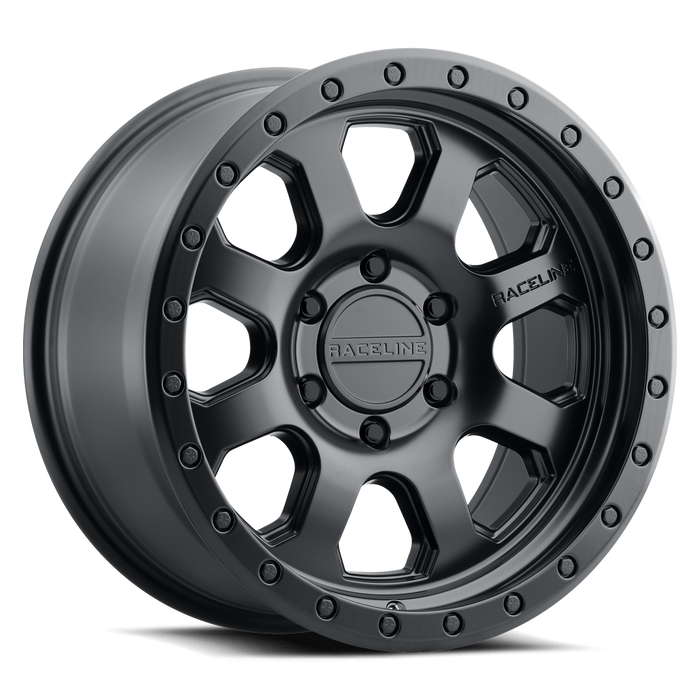

- The new Avenger 2.0 is a refresh of the classic and legendary Avenger Beadlock
- Clean off-road inspired spoke design
- Push thru cap with contrasting embossed Raceline logo
- Simulated beadlock lip with color matched stainless steel bolts
- Constructed out of heavy duty A356 aluminum
- Available in both Satin Black and Machined finishes
- Available in 17” to 20” diameters for most 5, 6 and 8 lug trucks and CUV’s
- Passes or exceeds all DOT standard load ratings
- Hub centric fitments available for select vehicles
- Includes a Lifetime Structural Warranty (limitations may apply)
Sizes & Specifications
| Size | Bolt Pattern | Offset | Weight (lb) | Part # |
|---|---|---|---|---|
| 20X9 | 5x150mm | 0mm | 42.0 | 959B-29051-00 |
| 20X9 | 6x139.7mm (6x5.5") | 0mm | 42.0 | 959B-29060-00 |
| 20X9 | 6x135mm | 0mm | 42.0 | 959B-29065-00 |
| 20X9 | 8x165.1mm (8x6.5") | 0mm | 43.0 | 959B-29080-00 |
| 20X9 | 8x170mm | 0mm | 43.0 | 959B-29081-00 |
| 20X9 | 8x180mm | 0mm | 44.0 | 959B-29088-00 |
| 17X8.5 | 5x127mm (5x5") | 0mm | 34.0 | 959B-78550-00 |
| 17X8.5 | 5x150mm | 0mm | 34.0 | 959B-78551-00 |
| 17X8.5 | 6x139.7mm (6x5.5") | 0mm | 33.0 | 959B-78560-00 |
| 17X8.5 | 6x135mm | 0mm | 34.0 | 959B-78565-00 |
| 17X8.5 | 8x165.1mm (8x6.5") | 0mm | 35.0 | 959B-78580-00 |
| 17X8.5 | 8x170mm | 0mm | 35.0 | 959B-78581-00 |
| 18X9 | 5x127mm (5x5") | 0mm | 37.0 | 959B-89050-00 |
| 18X9 | 5x150mm | 0mm | 36.0 | 959B-89051-00 |
| 18X9 | 6x139.7mm (6x5.5") | 0mm | 36.0 | 959B-89060-00 |
| 18X9 | 6x135mm | 0mm | 36.0 | 959B-89065-00 |
| 18X9 | 8x165.1mm (8x6.5") | 0mm | 38.0 | 959B-89080-00 |
| 18X9 | 8x170mm | 0mm | 38.0 | 959B-89081-00 |
| 18X9 | 8x180mm | 0mm | 38.0 | 959B-89088-00 |
Load rating(s): 2500, 3650 lb
Hub bore(s): 106.1, 110.5, 130.81, 78.1, 87.1 mm
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
