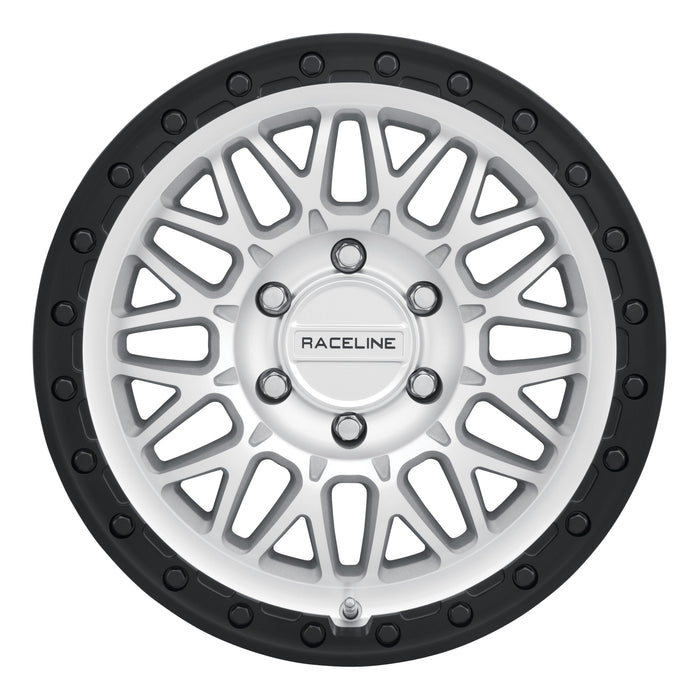

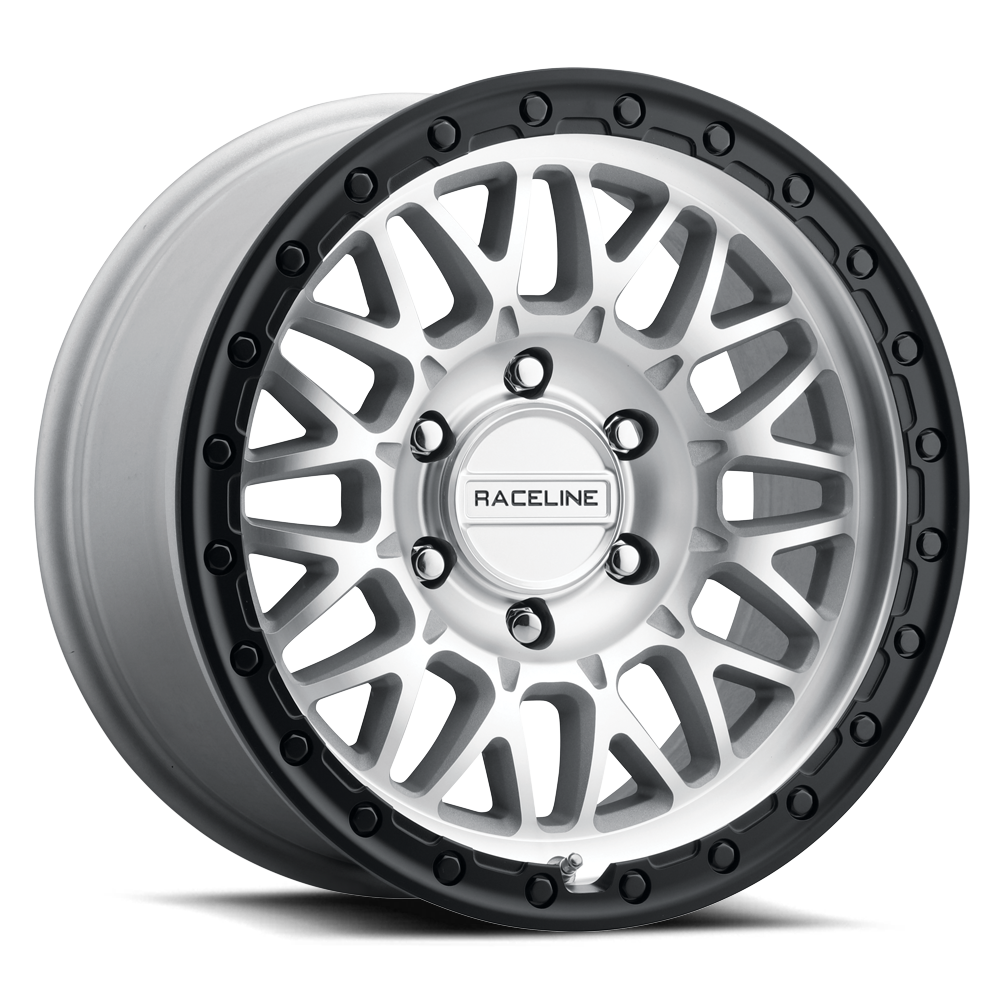

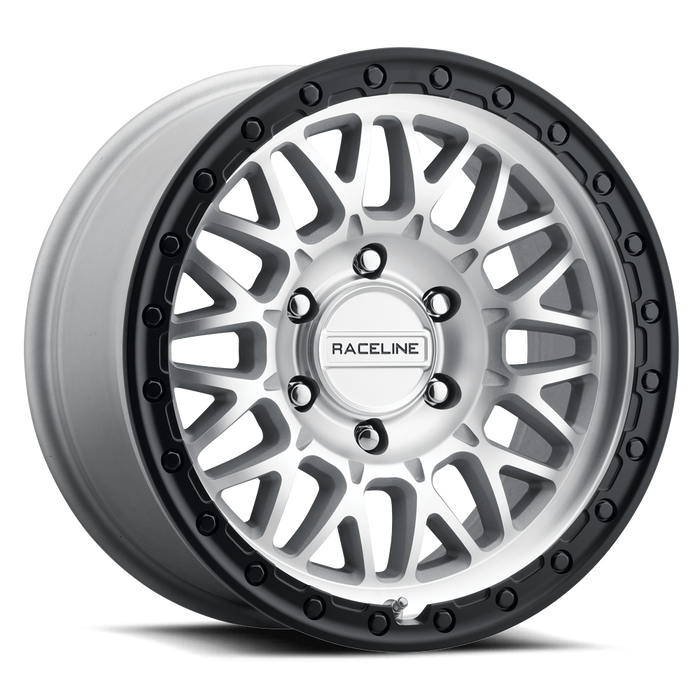

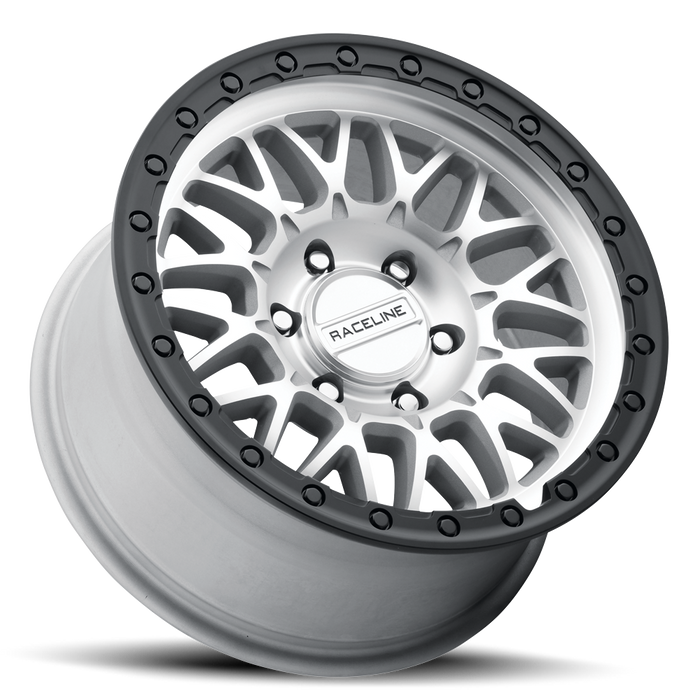

- Our legendary Omega mesh spoke design with its aggressive off-road inspired profile is now available to fit most most trucks
- Heavy-duty A356 aluminum alloy construction for strength and durability
- Reinforced simulated beadlock ring detail along with a “water evacuation feature” is a standard feature
- Color matched snap-in cap with debossed Raceline logo (8 lug fitments come with color matched push-thru caps)
- Available in Satin Black and Machined w/Satin Black ring and color matched stainless-steel bolts
- Available in 17x8.5, 18x9 and 20x9 for most 5, 6 and 8 lug trucks and SUV’s
- Engineered to meet Raceline’s strict quality and performance standards
- Includes a Lifetime Structural Warranty (limitations may apply)
Sizes & Specifications
| Size | Bolt Pattern | Offset | Weight (lb) | Part # |
|---|---|---|---|---|
| 20X9 | 6x139.7mm (6x5.5") | 0mm | 39.0 | 963MB-29060-00 |
| 20X9 | 6x135mm | 0mm | 39.0 | 963MB-29065-00 |
| 17X8.5 | 5x127mm (5x5") | 0mm | 30.0 | 963MB-78550-00 |
| 17X8.5 | 5x150mm | 25mm | 29.0 | 963MB-78551+25 |
| 17X8.5 | 6x139.7mm (6x5.5") | 25mm | 29.0 | 963MB-78560+25 |
| 17X8.5 | 6x139.7mm (6x5.5") | 0mm | 30.0 | 963MB-78560-00 |
| 17X8.5 | 6x135mm | 0mm | 30.0 | 963MB-78565-00 |
| 18X9 | 5x150mm | 18mm | 33.0 | 963MB-89051+18 |
| 18X9 | 6x139.7mm (6x5.5") | 18mm | 33.0 | 963MB-89060+18 |
| 18X9 | 6x135mm | 18mm | 33.0 | 963MB-89065+18 |
| 18X9 | 8x165.1mm (8x6.5") | 18mm | 34.0 | 963MB-89080+18 |
| 18X9 | 8x170mm | 18mm | 34.0 | 963MB-89081+18 |
| 18X9 | 8x180mm | 18mm | 34.0 | 963MB-89088+18 |
Load rating(s): 2500, 3650 lb
Hub bore(s): 106.1, 110.5, 130.81, 78.1, 87.1 mm
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
