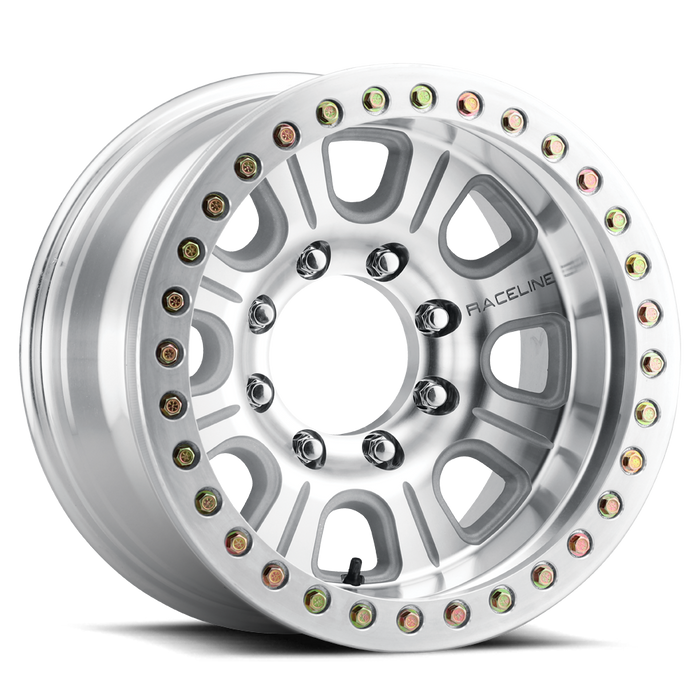

- Iconic 8 spoke design with a cast in Raceline logo that is easily recognizable
- Constructed out of heavy duty A356 aluminum with a forged 6061 beadlock ring.
- Engineered to be one of the strongest wheels available.
- US made grade 8 zinc beadlock hardware with hardened steel PEM-nuts that along with captive washers can be replaced as needed...no more stripped wheels that are deemed worthless. Another industry best that are standard issue with the Monster.
- 17" Aluminum Beadlock Bolts = 1.50" length

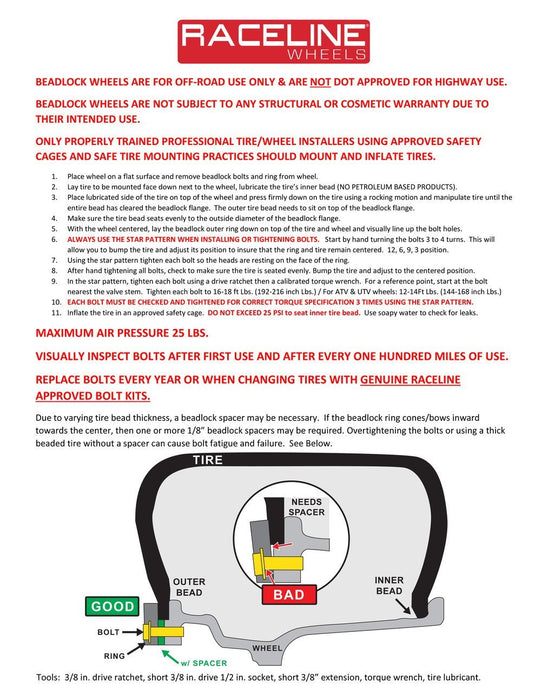

- For thicker beaded tires, Raceline Beadlock ring spacers are available to ensure proper ring seating.
- Available in 17”
Sizes & Specifications
| Size | Bolt Pattern | Offset | Weight (lb) | Part # |
|---|---|---|---|---|
| 17X9.5 | 5x114.3mm (5x4.5") | -32mm | 42.0 | RT233-79512-32 |
| 17X9.5 | 5x127mm (5x5") | -19mm | 42.0 | RT233-79550-19 |
| 17X9.5 | 5x127mm (5x5") | -32mm | 45.0 | RT233-79550-32 |
| 17X9.5 | 5x139.7mm (5x5.5") | -32mm | 44.0 | RT233-79555-32 |
| 17X9.5 | 5x139.7mm (5x5.5") DBP | -32mm | 44.0 | RT233-79555-D-32 |
| 17X9.5 | 6x139.7mm (6x5.5") | -19mm | 42.0 | RT233-79560-19 |
| 17X9.5 | 6x139.7mm (6x5.5") | -32mm | 44.2 | RT233-79560-32 |
| 17X9.5 | 6x139.7mm (6x5.5") DBP | -32mm | 44.0 | RT233-79560-D-32 |
| 17X9.5 | 6x135mm | -32mm | 42.0 | RT233-79565-32 |
| 17X9.5 | 8x165.1mm (8x6.5") | -32mm | 45.0 | RT233-79580-32 |
| 17X9.5 | 8x170mm | -32mm | 44.0 | RT233-79581-32 |
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
