MetalCloak's UnderCloak Integrated Armor/Skid Plate System delivers elite protection for the underside of your INEOS Grenadier Wagon. This integrated system of 1/4" and 3/16" gold zinc plated steel armor is designed for real-world off-road abuse, covering vulnerable components from front to back.
Features
- Elite Underside Protection, Refined Performance
- High-Strength Motor Skid Made from Formed and Welded 1/4" Plate Steel
- 1/4" Steel Oil Pan Skid for Maximum Approach Clearance
- 3/16" Steel Gas Tank Skid Protection
- 3/16" Steel Transfer Case Skid Protection
- 3/16" Steel Transmission Skid Protection
- Exclusive Flush-Mount Hardware
- Gold Zinc Chromate Coating

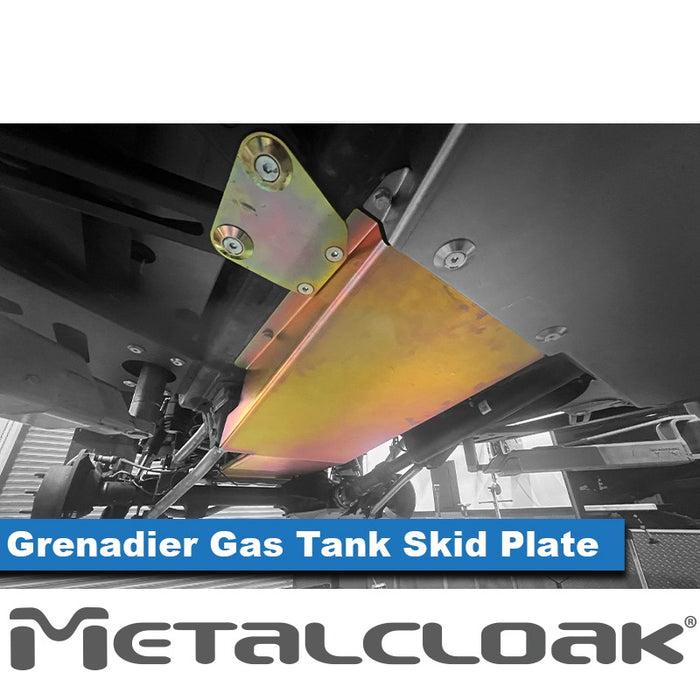

CAD-designed, CNC-formed, and laser-cut 1/4" and 3/16" steel sets the benchmark for strength throughout the system. Engineered with an enthusiast's perspective, the gas tank skid features upturned side edges that help obstacles slide past without catching your Grenadier.
The oil pan skid helps protect against impacts from sharp objects and is tucked up for maximum approach clearance. Integrated access allows you to reach the oil filter for servicing.
The transmission, transfer case, and gas tank skid plates are made of 3/16" plate steel. Their upturned edges protect your equipment while helping rocks and logs slide beneath your Grenadier.
The entire UnderCloak system uses skid guard washers at all exposed mounting points to help protect the hardware from trail damage. Gold zinc plating forms a molecular bond to the steel, providing lasting corrosion protection and a clean, consistent finish throughout the system.
Trust MetalCloak's UnderCloak Integrated Armor System for exceptional strength, underside protection, and off-road performance.
Specifications
- Compatibility: 2023–Current INEOS Grenadier
- Oil Pan/Motor Skid Plate: 1/4" Hot-Rolled Steel
- Transmission Skid Plate: 3/16" Hot-Rolled Steel
- Transfer Case Skid Plate: 3/16" Hot-Rolled Steel
- Gas Tank Skid Plate: 3/16" Hot-Rolled Steel
- Gas Tank Hanger: 1/8" Hot-Rolled Steel
- Approximate Weight: 150 lbs
- Coating: Gold Zinc
Installation
- Installation Difficulty: Moderate
- Body Modification: None
- Time to Install: 3–4 Hours
MetalCloak part #: 8250
