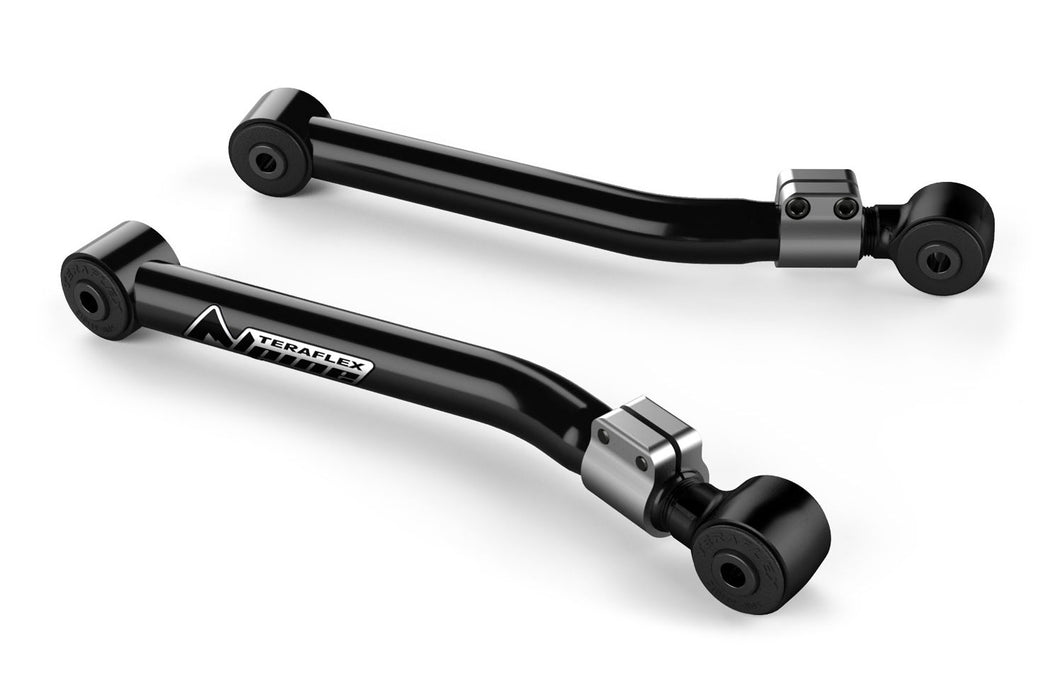

JK: Alpine Short Control Arm Kit - Rear Upper (2-4" Lift).
- TeraFlex JK: Alpine Short Control Arms provide maximum performance on JK Wrangler/Unlimited models with 2-4" lifts.
- Alpine Control Short Arms are constructed from durable 42mm x 4mm wall DOM tube for maximum strength
- Bolts to the factory control arm mounting brackets
- Install and drive simple bolt-on installation - no welding required
Fitment and Installation Notes
- Alignment required.
Fitment
- Vehicle(s):
- JK Wrangler (2-door)
- JK Wrangler Unlimited (4-door)
- Specs:
- Lift Height: 2–4”
- Control Arm Specs:
- Tube Diameter & Wall: 42mm x 4mm
- Factory Length: 17-7/16”
- Min. Length: 17-5/8”
- Max. Length: 18-7/8”
- Bolt – Both: 14mm
- Bushing – Both: 611012
What's included
- Alpine Short Arms:
- Arm – Rear Upper Left (# 1141561)
- Arm – Rear Upper Right (# 1141571)
Warranty: Lifetime
