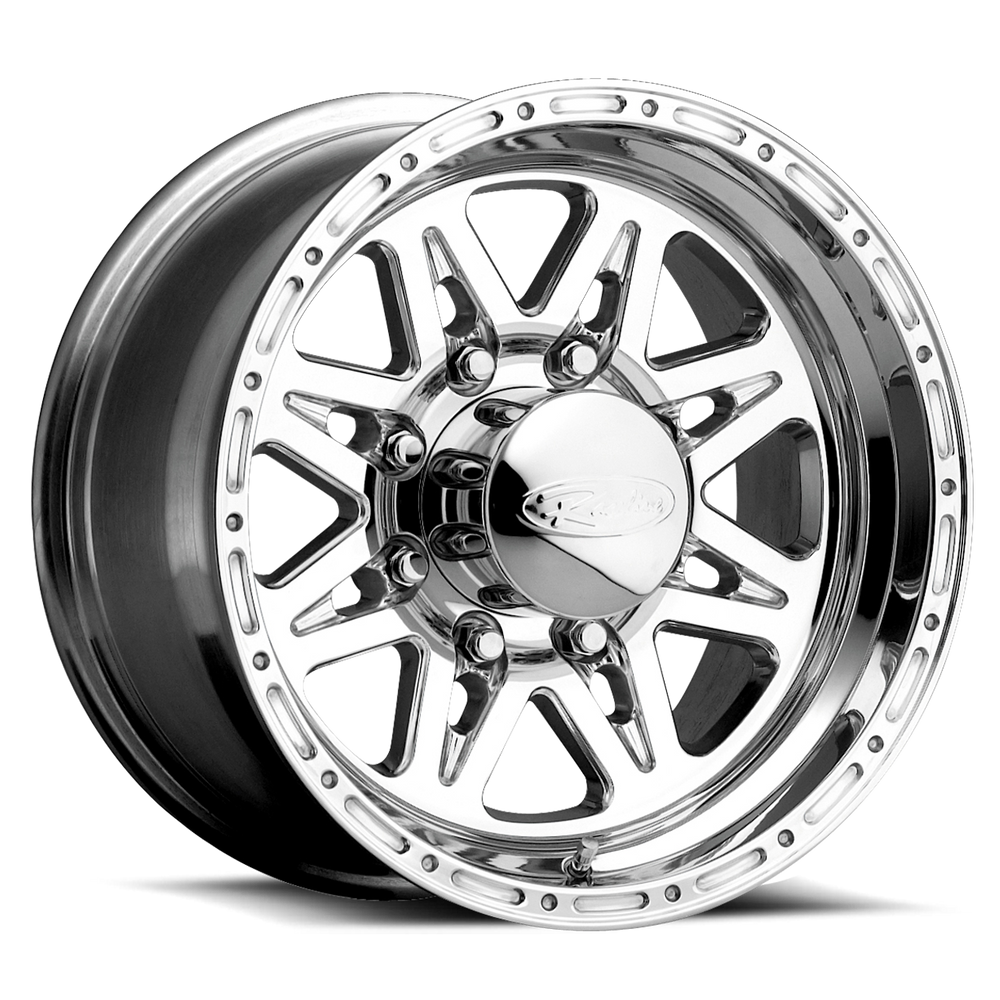

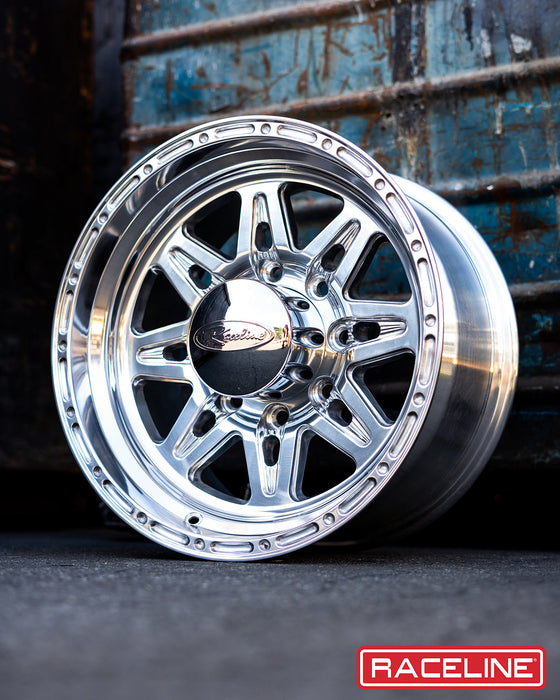

- Classic heritage inspired split spoke truck design
- Outer lip feature aids in overall weight savings

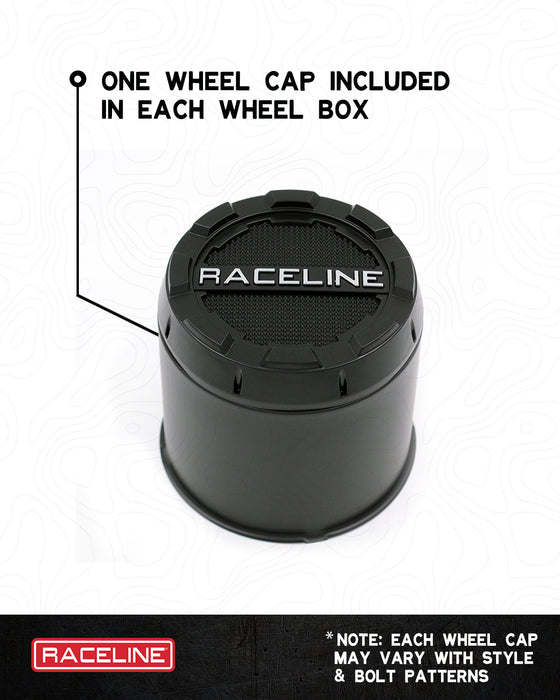

- Push thru cap with contrasting embossed Raceline logo
- Constructed out of heavy duty A356 aluminum
- Available in Polished and Satin Black finish
- Available in 16” and 17” diameters
- Passes or exceeds all DOT standard load ratings
- Hub centric fitments available for select vehicles
- Includes a Lifetime Structural Warranty (limitations may apply)
Sizes & Specifications
| Size | Bolt Pattern | Offset | Weight (lb) | Part # |
|---|---|---|---|---|
| 16X10 | 8x165.1mm (8x6.5") | -25mm | 27.0 | 888-60080 |
| 16X10 | 8x170mm | -25mm | 27.0 | 888-60081 |
| 16X8 | 8x165.1mm (8x6.5") | 0mm | 24.0 | 888-68080 |
| 16X8 | 8x170mm | 0mm | 24.0 | 888-68081 |
| 17X9 | 8x165.1mm (8x6.5") | -12mm | 27.0 | 888-79080 |
| 17X9 | 8x165.1mm (8x6.5") | 6mm | 26.0 | 888-79080P |
| 17X9 | 8x170mm | -12mm | 26.0 | 888-79081 |
Load rating(s): 3420 lb
Hub bore(s): 130.81 mm
Fitment shown by bolt pattern; confirm offset and brake clearance for your vehicle.
