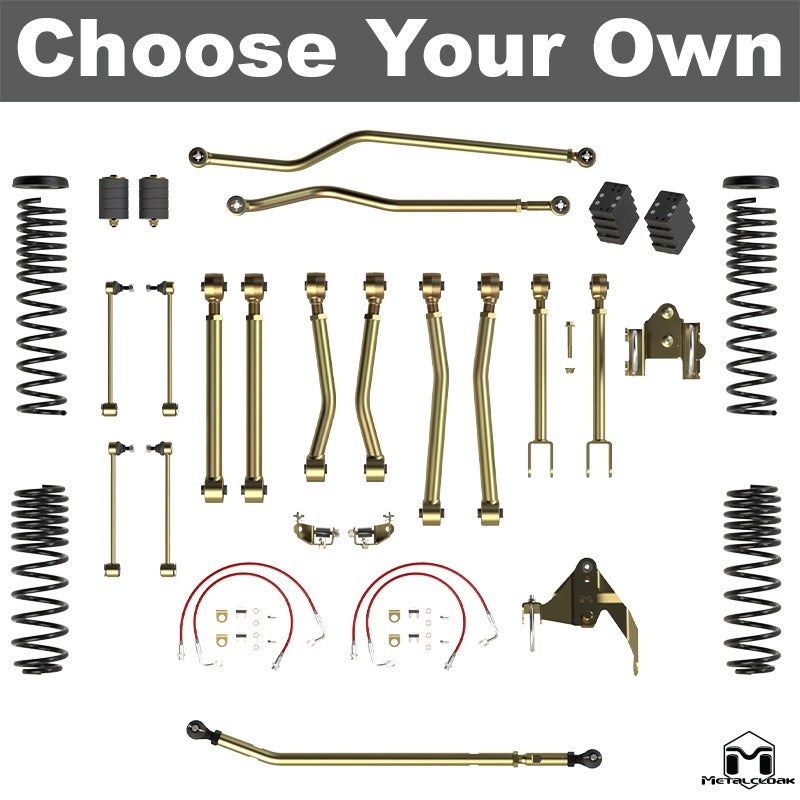

Jeep JK Wrangler 3.5" Game-Changer Suspension & Lift Kit, Right Hand Drive - 2 Door

Fitment: 2 Door

Right Hand Drive Vehicles Only (NON-US MODELS ONLY) Our elite mid-arm Game Changing Suspension System outperforms the competition, incorporating exclusive patented technology that’s unmatched anywhere else.

Features

• Duroflex™ Joints enhanced with Kevlar
• True Dual Rate™ Coils
• Front Coil Isolators
• Durotrak™ Equipped Track Bars
• Right Hand Drive Front Track Bar
• Right Hand Drive Front & Rear Track Bar Brackets
• Heavy Duty Drag Link
• Height adjustable bump stops
• Specifically tuned shocks for True Dual Rate Coils
• Designed for maximum UP and DOWN travel

The MetalCloak Game Changing Duroflex™ Joints are the only vulcanized elastomer, self-centering joints enhanced with DuPont™ Kevlar® fiber, delivering unmatched durability. These joints allow for more misalignment in the control arms and provide superior vibration dampening compared to any other option available. Exclusive to MetalCloak (see full details in the main body).

Our True Dual Rate™ Coils offer a smoother, more stable ride compared to traditional single-rate lift springs and outperform typical "progressive/multi-rate" coils in load handling. These coils are extra-long in free length, designed to maintain contact for extreme articulation. With over a decade of proven performance, MetalCloak's True Dual Rate coils deliver exceptional durability.

The MetalCloak Thermoset Elastomer Coil Isolator upgrade pads are specifically engineered to outperform factory components. These durable pads are made for MetalCloak True Dual Rate Coils and are model-specific for optimal performance.

Durotrak bushings reduce NVH (noise, vibration, and harshness) transferred to the driver, offering a smoother ride and improved steering input. The patented two-part design allows the bushing to rotate 360 degrees in a vertical plane, minimizing horizontal forces to keep the axle centered and ensuring your Jeep stays on course.

The Heavy Duty Drag Link high clearance bend of the strong 1.375 OD tubing is engineered for up and down travel providing the needed space for aftermarket axles and differential covers and is coated with gold zinc chromate for a long lasting finish. Factory like fitment with OE taper pin and lock nut are found with the Dual 1-ton forged and heat treated Rod-Ends. They have extra strength right where it is needed and are designed to control directional misalignment to prevent Drag Link flop. Sealed with Durable rubber grease boots the ends are easily serviceable via zerk fittings.

We offer flexible shock options to match your build. If you have a preferred shock setup, you can use it. However, MetalCloak suspensions are designed to be optimized with our patented 6Pak™ Shocks for maximum up-and-down travel. Our exclusive RockSport Shocks provide excellent travel with the simplicity of a standard shock, sharing the same valving as the 6Paks for a low-maintenance, affordable solution. If you prefer, we also offer Fox 2.0 Performance Series Shocks, which provide great performance with limited travel. You can purchase the suspension with or without shocks and add any shocks you choose.

MetalCloak introduces adjustable height front and rear bump stops, allowing you to fine-tune travel based on your tire size. These bump stops can be adjusted for clearance without removing the coils, providing the flexibility you need for your setup.

All MetalCloak suspension components are designed for maximum up-and-down travel, offering the best suspension geometry for the performance you demand.

MetalCloak components have been FMVSS safety-certified when configured with 37-inch tires, full body armor, and a suspension lift, proving their safety and reliability.

Note: All 2012+ JK Wranglers will require either exhaust spacers or a driveshaft. Please see what’s this on front driveshaft clearance option.

Note: 6Pak Shocks are not shipped outside of North America. If you are outside of the USA or Canada and order 6Pak shocks or any kit with 6Pak shocks, you are waiving the rights to the lifetime customer service and manufacturers warranty."

Note: MetalCloak engineers have chosen shocks that have been proven to have the ideal synergy with our systems. We have not tested other shocks on the market as to whether they complement our Game-Changer system or suppress its performance.

Note: We Recommend You Have a Suspension Specialist Align Your Jeep Once a MetalCloak Suspension is Installed.

Note: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.

Note: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.

Specifications

• Control Arms: 1 1/2" x.187 DOM Steel Tubing 1 5/8" x .25 DOM Steel Tubing
• Duroflex Joint: Proprietary Vulcanized Elastomer made with DuPont™ Kevlar® fiber
• Coils: High Tensile Chrome Steel
• Track Bar: 4130 Solid Chromoly
• Durotrak Bushing: Proprietary Vulcanized Elastomer
• Track Bar Bracket: 3/16" Hot Rolled Steel
• Coil Isolator: Thermoset Elastomer
• Front & Rear Adjustable Bump Stops: Thermoset Elastomer
• Brake lines: Braided Stainless Hose
• Steel Coating: Gold Zinc

Installation

• Installation Difficulty: Moderate
• Body Modification: None
• Time to Install: 6 - 8 Hours

Important Notes

• sectionHeaderTitle">IMPORTANT NOTES
• Exhaust Modification: All 2012+ JK Wranglers will require either exhaust spacers or a driveshaft. Please see what’s this on front driveshaft clearance option.
• Warranty: 6Pak Shocks are not shipped outside of North America. If you are outside of the USA or Canada and order 6Pak shocks or any kit with 6Pak shocks, you are waiving the rights to the lifetime customer service and manufacturers warranty."
• Shock Options: MetalCloak engineers have chosen shocks that have been proven to have the ideal synergy with our systems. We have not tested other shocks on the market as to whether or not they compliment our Game-Changer system or suppress its performance.
• True Dual Rate Coils: MetalCloak does not recommend powder coating your True Dual Rate Coils. See instructions for additional details.
• Suspension Alignment: We Recommend You Have a Suspension Specialist Align Your Jeep Once a MetalCloak Suspension is Installed.
• System Customization: This item is being offered as a complete system that contains all the components shown. We cannot customize, replace or remove a component from the kit. If you need a custom order, all components are available individually and our sales team is happy to help you place your order.
• System Components: If you purchase this system, and decide you do not need a component or part of the system, we cannot accept returns.
• <h1 class="

MetalCloak part #: A1235R
