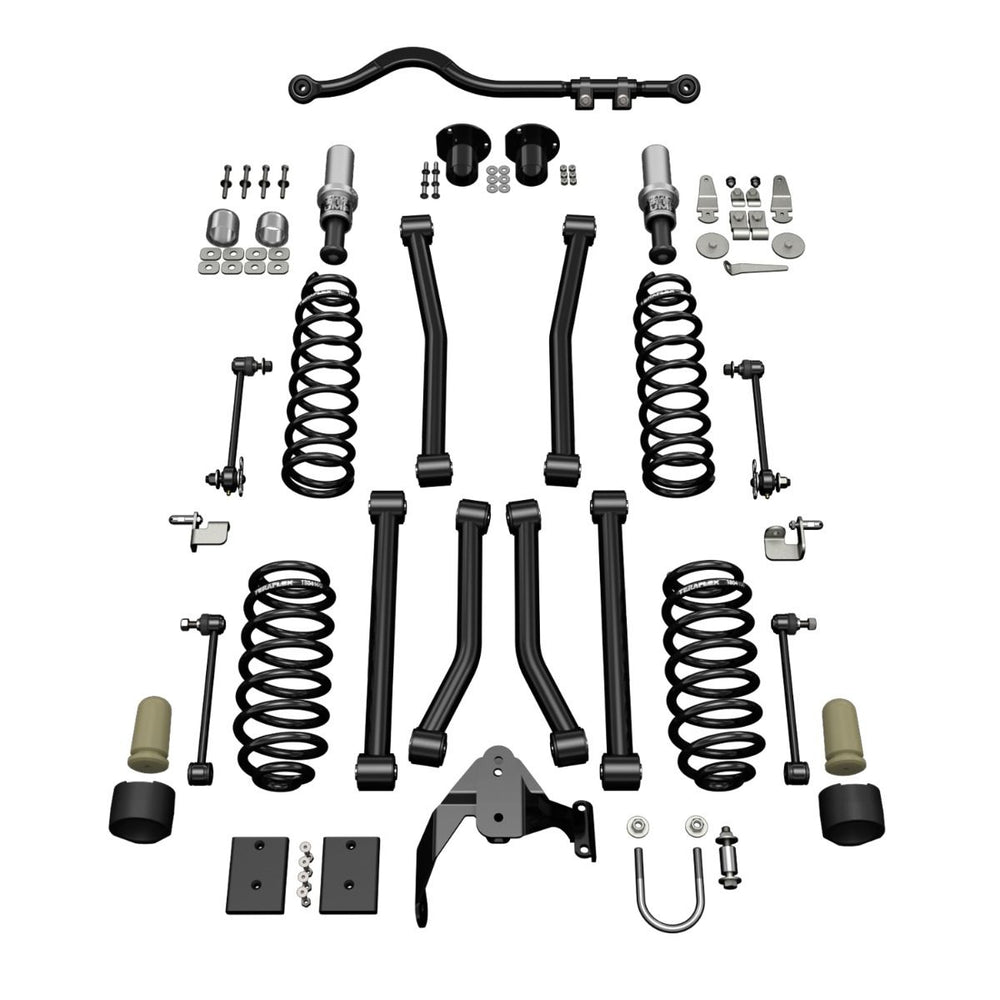

JK 2dr: TeraFlex 3" Sport ST3 Suspension System – No Shocks – 1213000
JK 2dr: 3" Sport ST3 Suspension System - No Shocks.
These all-inclusive TeraFlex Sport ST (Street & Trail) Suspensions Systems deliver true street & trail (ST) performance and capability in a dependable and maintenance-free package. At home on black diamond trails or city streets the 3" Sport ST3 Suspension System features front lower rear upper and rear lower preset Sport Control Arms SpeedBump Front & Progressive Rear Bump Stops front brake line anchors and more.
Although the Sport ST3 clears the same size tires as the Sport ST2 the additional components increase ground clearance without compromising on- and off-road prowess. All Sport ST Suspension Systems feature lift coil springs bump stops and front sway bar quick disconnects optimized for stated lift height. Sport ST2 and Sport ST3 Suspension Systems add preset Sport Control Arms (2.5"+: front lower; 3": rear upper rear lower) to balance caster and pinion angles as well as optimize rear pinion angles anti-squat geometry and tire position.
These systems also include our HD Forged Adjustable Front Track Bar and rear track bar bracket which improve steering response center the axles to optimize vehicle roll center and reduce body roll for improved handling. These maintenance-free suspension systems provide superior on-road ride quality and comfort with maximum off-road flex. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH). Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve both compression and rebound for optimal vehicle stability.
Sport ST3 Suspension Systems are offered with select Falcon Series Shocks including: 3.3 Fast Adjust 3.1 Piggyback 2.1 Monotube or without shock absorbers. At home on black diamond trails or city streets, the 3" Sport ST3 Suspension System features additional components over the 2.5" Sport ST2 to increase ground clearance without compromising on- or off-road prowess.
Fitment and Installation Notes
- This results in a simple install and drive bolt-on installation with no cutting welding or alignment required.
- Does NOT include shocks.
- Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- May require driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014).
- 2007-2011 JK Wrangler/Unlimited models will require longer 26" Front Stainless Steel Braided Brake Line Kit (# 4353310).
- Requires cutting.
- Alignment required.
- Requires longer shocks (NOT INCLUDED in base kit)
- Falcon Performance Shocks recommended.
999296 07-17 JK 3 Inch Suspension Lift Kit (1.25 MB) Have a certified mechanic do it for you!
- Color: 12mm X 100
- Sport ST3:
- Lift Height: 3"
- Max Tire Diameter: 35"
- Preset Sport Control Arms (front lower, rear upper, rear lower) balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2-3" lift kits
- Front SpeedBump and rear Progressive Bump Stops provide progressive compression during high-speed suspension movement
- Street & Trail:
- Delivers true Street & Trail (ST) performance
- Positive, responsive handling with reduced NVH
- High-quality, dependable, maintenance-free, factory'style bushings provide excellent NVH damping and ride quality.
- Adjustable Front Track Bar (2.5"+) and Rear Track Bar Bracket (2.5"+) improve steering response, center axles to optimize vehicle roll center, and reduce body roll for improved handling
- Full range of movement for off-road flex and articulation
- Install and drive, simple bolt-on installation - no welding required
- TeraFlex Limited Lifetime Warranty against defects
- Fitment: JK Wrangler (2-Door)
- Height: 25
- Installation Time: 10 hours
- Length: 42
- Product Image Size: Default
- Note: Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- Note: May require driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014).
- Note: 2007-2011 JK Wrangler/Unlimited models will require longer 26" Front Stainless Steel Braided Brake Line Kit (# 4353310).
- Note: Requires cutting.
- Note: Alignment required.
- Note: Requires longer shocks (NOT INCLUDED in base kit)
- Note: Falcon Performance Shocks recommended.
- Size: 2XL
- Featured: No
- Width: 19
Description
JK 2dr: 3" Sport ST3 Suspension System - No Shocks.
- At home on black diamond trails or city streets, the 3" Sport ST3 Suspension System features additional components over the 2.5" Sport ST2 to increase ground clearance without compromising on- or off-road prowess.
- Lift Height: 3"
- Max Tire Diameter: 35"
- Front SpeedBump and rear Progressive Bump Stops provide progressive compression during high-speed suspension movement
Fitment and Installation Notes
- Does NOT include shocks.
- Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- May require driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014).
- 2007-2011 JK Wrangler/Unlimited models will require longer 26" Front Stainless Steel Braided Brake Line Kit (# 4353310).
- Requires cutting.
See the full product description and installation notes for additional requirements and compatibility details.
- Details
-
JK 2dr: 3" Sport ST3 Suspension System - No Shocks.
These all-inclusive TeraFlex Sport ST (Street & Trail) Suspensions Systems deliver true street & trail (ST) performance and capability in a dependable and maintenance-free package. At home on black diamond trails or city streets the 3" Sport ST3 Suspension System features front lower rear upper and rear lower preset Sport Control Arms SpeedBump Front & Progressive Rear Bump Stops front brake line anchors and more.
Although the Sport ST3 clears the same size tires as the Sport ST2 the additional components increase ground clearance without compromising on- and off-road prowess. All Sport ST Suspension Systems feature lift coil springs bump stops and front sway bar quick disconnects optimized for stated lift height. Sport ST2 and Sport ST3 Suspension Systems add preset Sport Control Arms (2.5"+: front lower; 3": rear upper rear lower) to balance caster and pinion angles as well as optimize rear pinion angles anti-squat geometry and tire position.
These systems also include our HD Forged Adjustable Front Track Bar and rear track bar bracket which improve steering response center the axles to optimize vehicle roll center and reduce body roll for improved handling. These maintenance-free suspension systems provide superior on-road ride quality and comfort with maximum off-road flex. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH). Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve both compression and rebound for optimal vehicle stability.
Sport ST3 Suspension Systems are offered with select Falcon Series Shocks including: 3.3 Fast Adjust 3.1 Piggyback 2.1 Monotube or without shock absorbers. At home on black diamond trails or city streets, the 3" Sport ST3 Suspension System features additional components over the 2.5" Sport ST2 to increase ground clearance without compromising on- or off-road prowess.
Fitment and Installation Notes
- This results in a simple install and drive bolt-on installation with no cutting welding or alignment required.
- Does NOT include shocks.
- Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- May require driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014).
- 2007-2011 JK Wrangler/Unlimited models will require longer 26" Front Stainless Steel Braided Brake Line Kit (# 4353310).
- Requires cutting.
- Alignment required.
- Requires longer shocks (NOT INCLUDED in base kit)
- Falcon Performance Shocks recommended.
Features & Benefits
- Sport ST3:
- Lift Height: 3"
- Max Tire Diameter: 35"
- Preset Sport Control Arms (front lower, rear upper, rear lower) balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 2-3" lift kits
- Front SpeedBump and rear Progressive Bump Stops provide progressive compression during high-speed suspension movement
- Street & Trail:
- Delivers true Street & Trail (ST) performance
- Positive, responsive handling with reduced NVH
- High-quality, dependable, maintenance-free, factory'style bushings provide excellent NVH damping and ride quality.
- Adjustable Front Track Bar (2.5"+) and Rear Track Bar Bracket (2.5"+) improve steering response, center axles to optimize vehicle roll center, and reduce body roll for improved handling
- Full range of movement for off-road flex and articulation
- Install and drive, simple bolt-on installation - no welding required
- TeraFlex Limited Lifetime Warranty against defects
- Installation Time: 10 hours
- At home on black diamond trails or city streets, the 3" Sport ST3 Suspension System features additional components over the 2.5" Sport ST2 to increase ground clearance without compromising on- or off-road prowess.
- Lift Height: 3"
- Max Tire Diameter: 35"
- Front SpeedBump and rear Progressive Bump Stops provide progressive compression during high-speed suspension movement
- Does NOT include shocks.
- Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- May require driveshaft modifications such as our High-Angle Rzeppa CV Driveshafts or our High-Angle Rzeppa CV Joint Kit (# 1744014).
- 2007-2011 JK Wrangler/Unlimited models will require longer 26" Front Stainless Steel Braided Brake Line Kit (# 4353310).
- Requires cutting.
Fitment
- JK Wrangler (2-Door)
