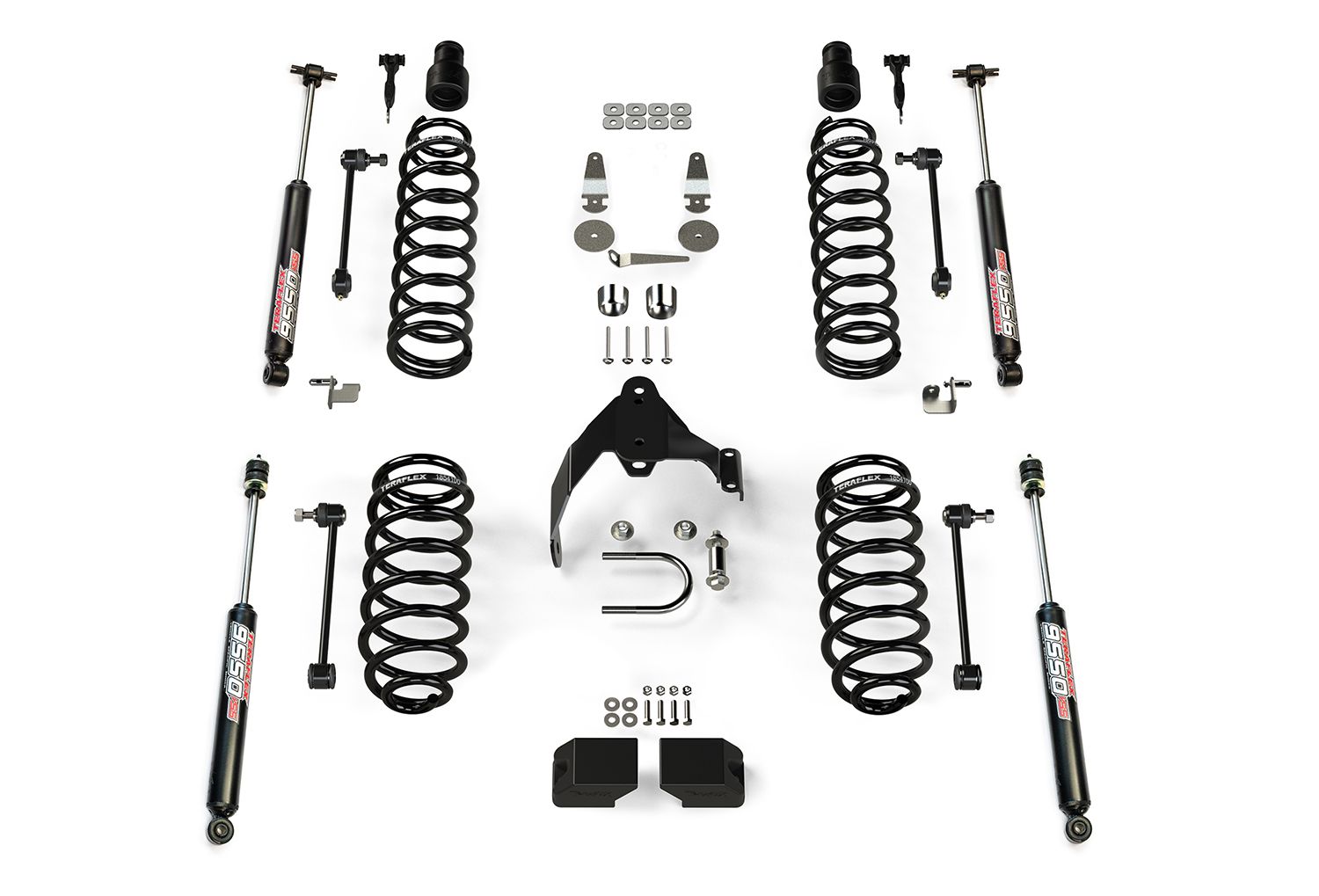

JK 4dr: TeraFlex 3" Coil Spring Base Lift Kit & 9550 VSS Twin-Tube – 1251200
by TeraFlex
$1,141.97
SKU 1251200
JK 4dr: 3" Coil Spring Base Lift Kit & 9550 VSS Twin-Tube.
We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Shocks. Coil Spring Base Lift Kits are offered with TeraFlex 9550 VSS Twin-Tube Shocks or without shock absorbers. Falcon Performance Shocks are available separately.
Fitment and Installation Notes
- TeraFlex Coil Spring Base Lift Kits raise your Jeep for more off-road ground clearance. These kits require additional components for proper suspension alignment - sold separately.
- The TeraFlex JK 4dr: 3" Coil Spring Base Lift Kit includes just the basic lift components only and doesn't have the drivability of a full suspension system.
- Requires longer preset or adjustable control arms and adjustable front track bar to correct suspension geometry.
- These are the only shock absorbers engineered to work with TeraFlex lift coil springs to improve both compression and rebound for optimal vehicle stability.
- Caster correction required - NOT INCLUDED.
- Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- Driveshaft modifications may be necessary with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (# 1744014).
- 2007-2011 JK Wrangler/Unlimited models will require Extended Length Front Brake Lines (# 4353300).
- Requires longer shocks (NOT INCLUDED in base kit) - we recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks (# 1545200).
DO IT YOURSELF: Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. TeraFlex is NOT responsible for any damage or failure resulting from improper installation.
Estimated Labor Time: 5 hours Installation Effort: 5 hours
999124 JK Wrangler 3 Lift Kit Instructions (173.44 kB) Have a certified mechanic do it for you!
- Color: 12mm X 100
- Fitment: JK Wrangler Unlimited (4-Door)
- Height: 23
- Installation Time: 5 hours
- Length: 25
- Product Image Size: Default
- Note: Caster correction required - NOT INCLUDED.
- Note: Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- Note: Driveshaft modifications may be necessary with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (# 1744014).
- Note: 2007-2011 JK Wrangler/Unlimited models will require Extended Length Front Brake Lines (# 4353300).
- Note: Requires longer shocks (NOT INCLUDED in base kit) - we recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks (# 1545200).
- Size: 2XL
- Featured: No
- Width: 28
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product
Description
JK 4dr: 3" Coil Spring Base Lift Kit & 9550 VSS Twin-Tube.
- TeraFlex Coil Spring Base Lift Kits raise your Jeep for more off-road ground clearance.
- We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Shocks.
- Coil Spring Base Lift Kits are offered with TeraFlex 9550 VSS Twin-Tube Shocks or without shock absorbers.
- Falcon Performance Shocks are available separately.
Fitment and Installation Notes
- These kits require additional components for proper suspension alignment - sold separately.
- Requires longer preset or adjustable control arms and adjustable front track bar to correct suspension geometry.
- Caster correction required - NOT INCLUDED.
- Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- 2007-2011 JK Wrangler/Unlimited models will require Extended Length Front Brake Lines (# 4353300).
See the full product description and installation notes for additional requirements and compatibility details.
- Details
-
JK 4dr: 3" Coil Spring Base Lift Kit & 9550 VSS Twin-Tube.
We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Shocks. Coil Spring Base Lift Kits are offered with TeraFlex 9550 VSS Twin-Tube Shocks or without shock absorbers. Falcon Performance Shocks are available separately.
Fitment and Installation Notes
- TeraFlex Coil Spring Base Lift Kits raise your Jeep for more off-road ground clearance. These kits require additional components for proper suspension alignment - sold separately.
- The TeraFlex JK 4dr: 3" Coil Spring Base Lift Kit includes just the basic lift components only and doesn't have the drivability of a full suspension system.
- Requires longer preset or adjustable control arms and adjustable front track bar to correct suspension geometry.
- These are the only shock absorbers engineered to work with TeraFlex lift coil springs to improve both compression and rebound for optimal vehicle stability.
- Caster correction required - NOT INCLUDED.
- Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- Driveshaft modifications may be necessary with this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (# 1744014).
- 2007-2011 JK Wrangler/Unlimited models will require Extended Length Front Brake Lines (# 4353300).
- Requires longer shocks (NOT INCLUDED in base kit) - we recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks (# 1545200).
Features & Benefits
- Installation Time: 5 hours
- TeraFlex Coil Spring Base Lift Kits raise your Jeep for more off-road ground clearance.
- We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Shocks.
- Coil Spring Base Lift Kits are offered with TeraFlex 9550 VSS Twin-Tube Shocks or without shock absorbers.
- Falcon Performance Shocks are available separately.
- These kits require additional components for proper suspension alignment - sold separately.
- Requires longer preset or adjustable control arms and adjustable front track bar to correct suspension geometry.
- Caster correction required - NOT INCLUDED.
- Requires aftermarket wheels with 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
- 2007-2011 JK Wrangler/Unlimited models will require Extended Length Front Brake Lines (# 4353300).
Fitment
- JK Wrangler Unlimited (4-Door)
